One Ai-Powered Portable Scanner. Multiple Clinical Applications.
The 3 in 1 Linear Convex Color Doppler with Cardiac Functions combines abdominal, cardiac, vascular, MSK, and superficial imaging in one compact wireless device - giving clinicians greater flexibility, faster decisions, and professional ultrasound performance wherever they work.

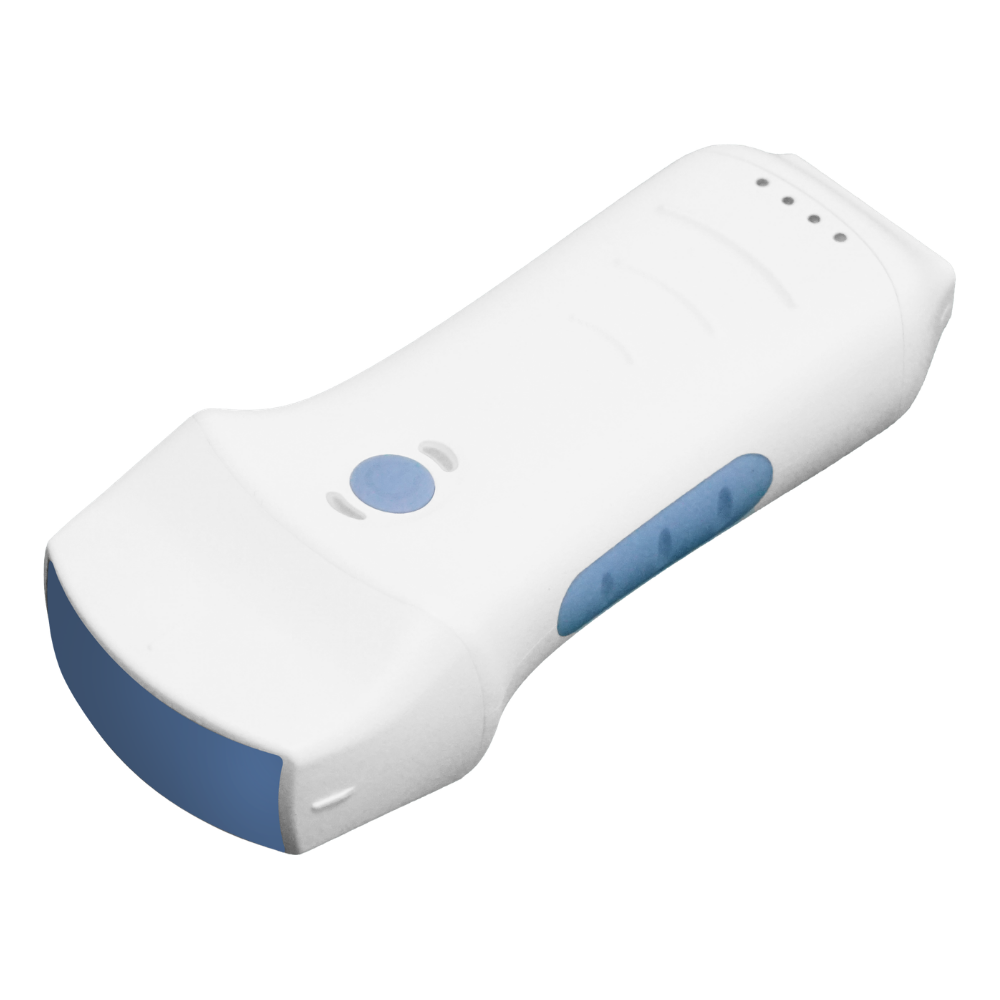

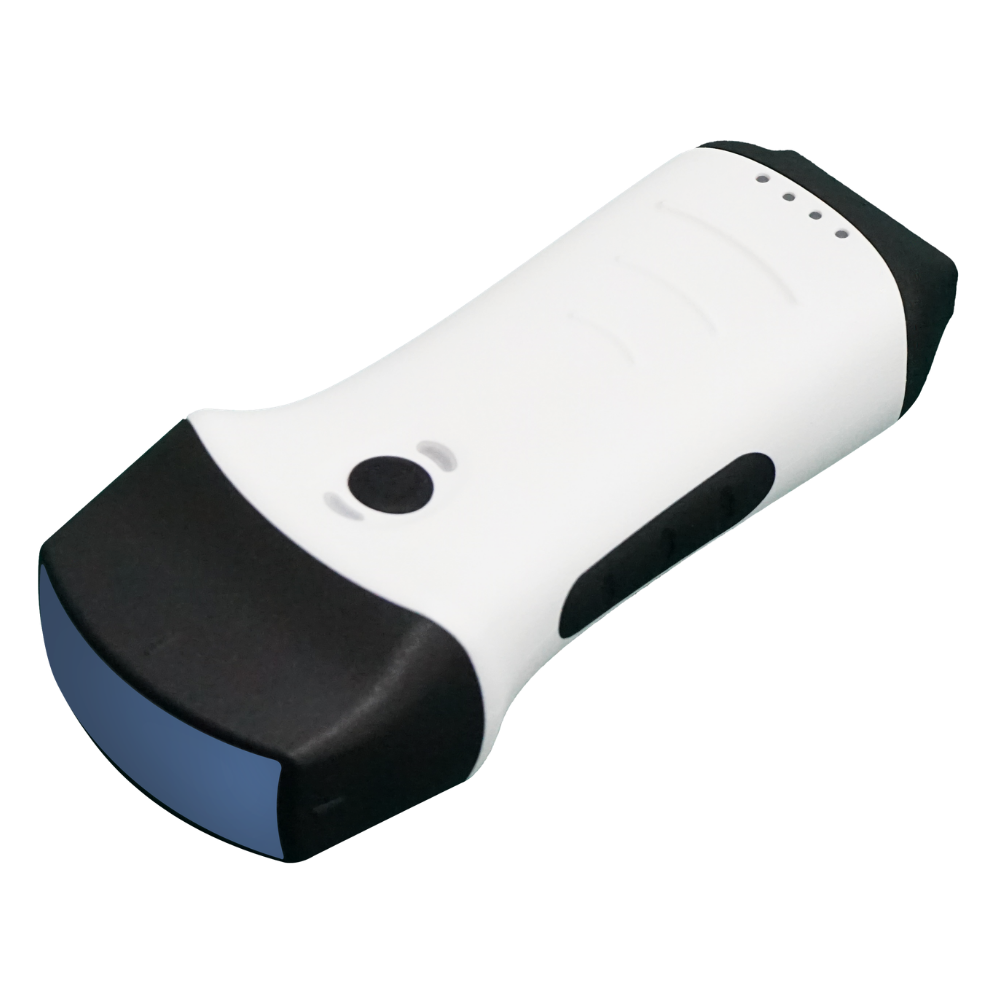

The 3 in 1 Linear Convex Color Doppler with Cardiac Functions is a powerful all-in-one portable ultrasound scanner designed for clinicians who need versatility, performance, and mobility in one compact device.
Combining convex, linear, and cardiac imaging modes, it enables a wide range of examinations including abdominal, cardiac, vascular, musculoskeletal, thyroid, breast, lung, urology, and point-of-care assessments.

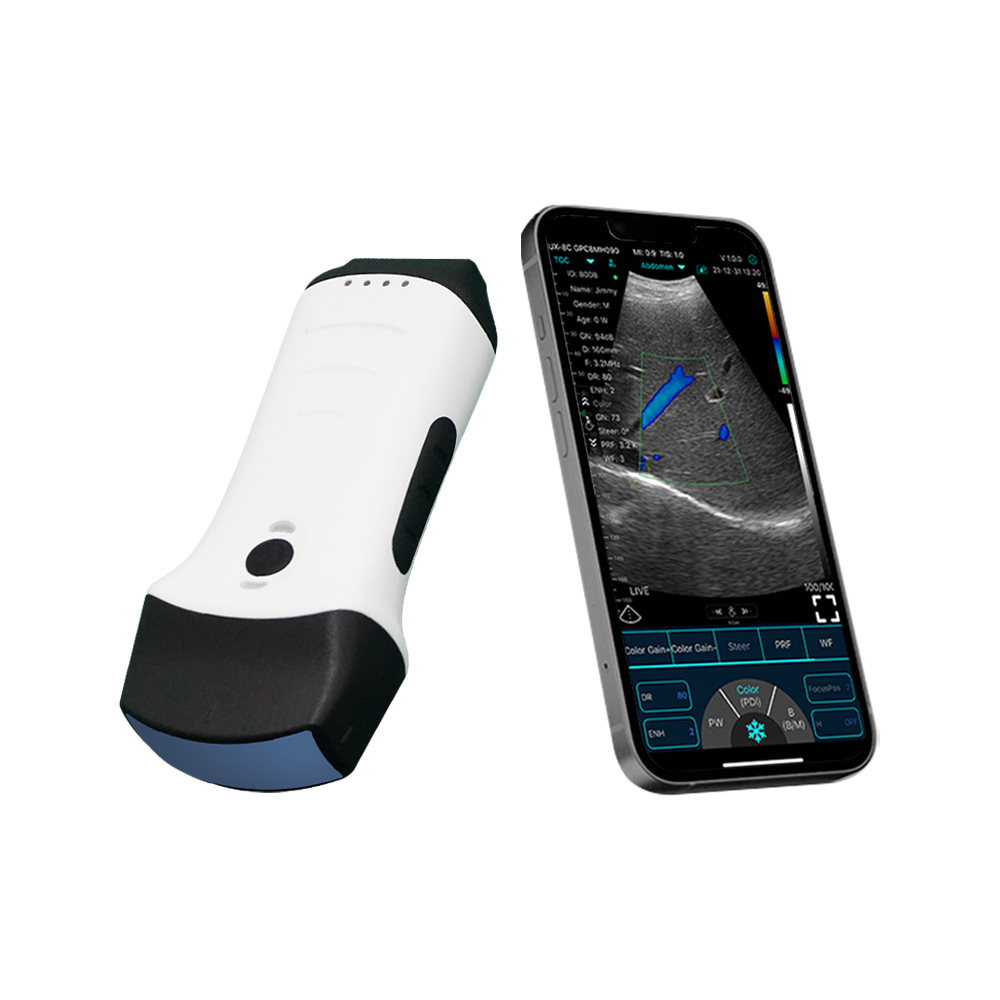

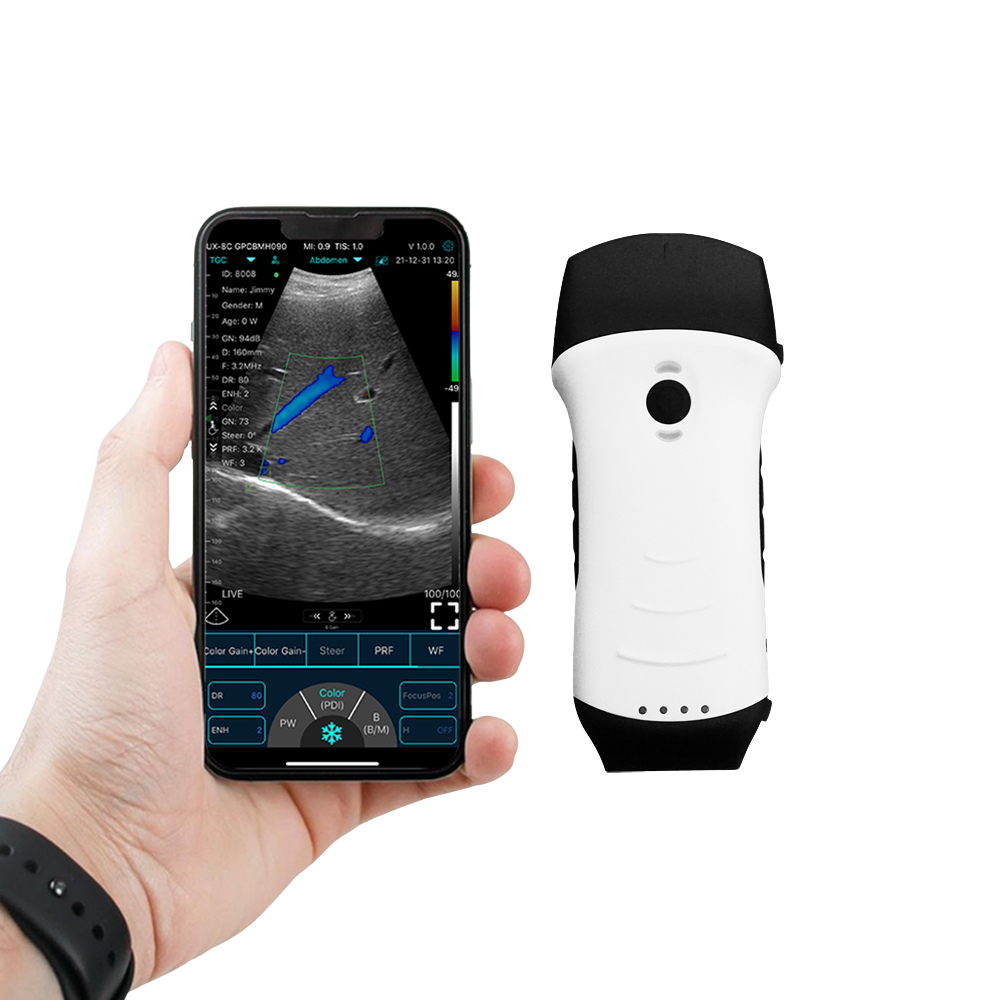

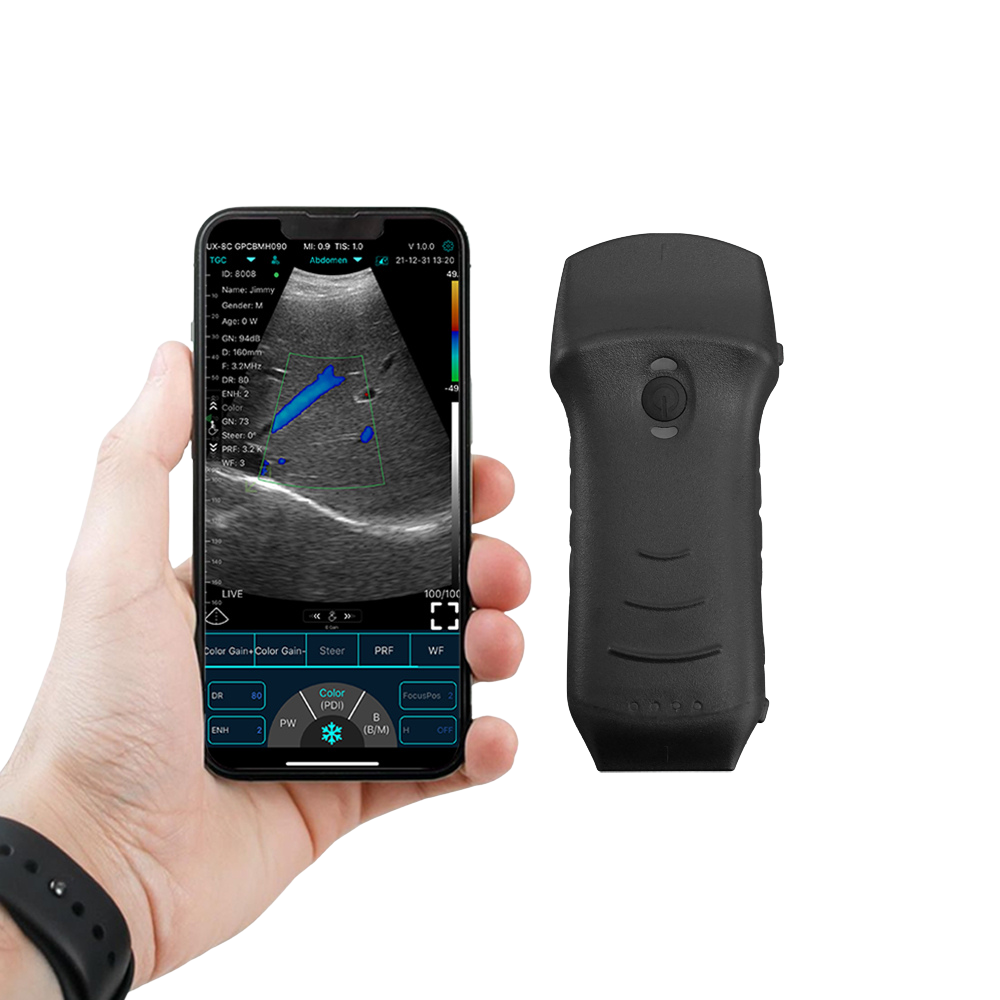

With wireless WiFi and USB connectivity, the scanner works seamlessly with iOS, Android, and Windows smartphones, tablets, and PCs - delivering professional imaging without bulky consoles.
Its colour Doppler capability, multiple scan presets, and portable ergonomic design help clinicians make faster decisions, improve workflow efficiency, and deliver confident patient care wherever they work.
6 Key Benefits
1. Three Scanners in One Device
Combines convex, linear, and cardiac imaging modes in one portable probe, allowing clinicians to perform a wide range of examinations without changing equipment.
2. Broad Clinical Versatility
Ideal for abdominal, cardiac, vascular, MSK, lung, thyroid, breast, urology, obstetric, and point-of-care applications, making it suitable for multiple specialties and healthcare settings.
3. Portable Wireless Convenience
With WiFi and USB connectivity, the scanner works with smartphones, tablets, and PCs, giving clinicians professional imaging without bulky consoles or fixed systems.
4. Colour Doppler for Greater Insight
Built-in Colour Doppler, PW, and PDI modes help assess blood flow and vascular structures, supporting more informed diagnosis and treatment planning.
5. Faster Workflow & Better Efficiency
One multi-purpose scanner reduces the need for multiple devices, saves time between examinations, and helps clinicians work more efficiently in busy environments.
6. Long Battery Life & Flexible Charging
Powered by dual rechargeable batteries with up to 4 hours continuous scanning and wireless or USB charging options, helping practitioners stay productive throughout the day.
One Scanner. Three Modes. Endless Clinical Possibilities.
Specifications
(Click a feature to expand)
C10TX

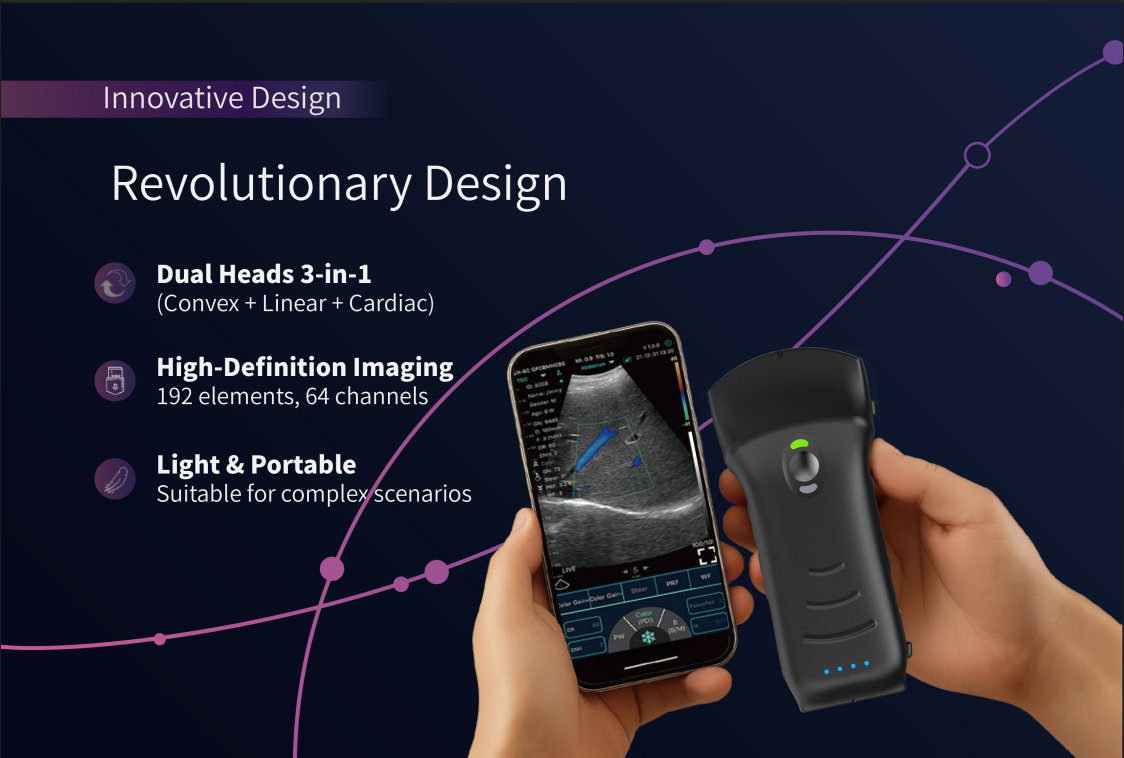

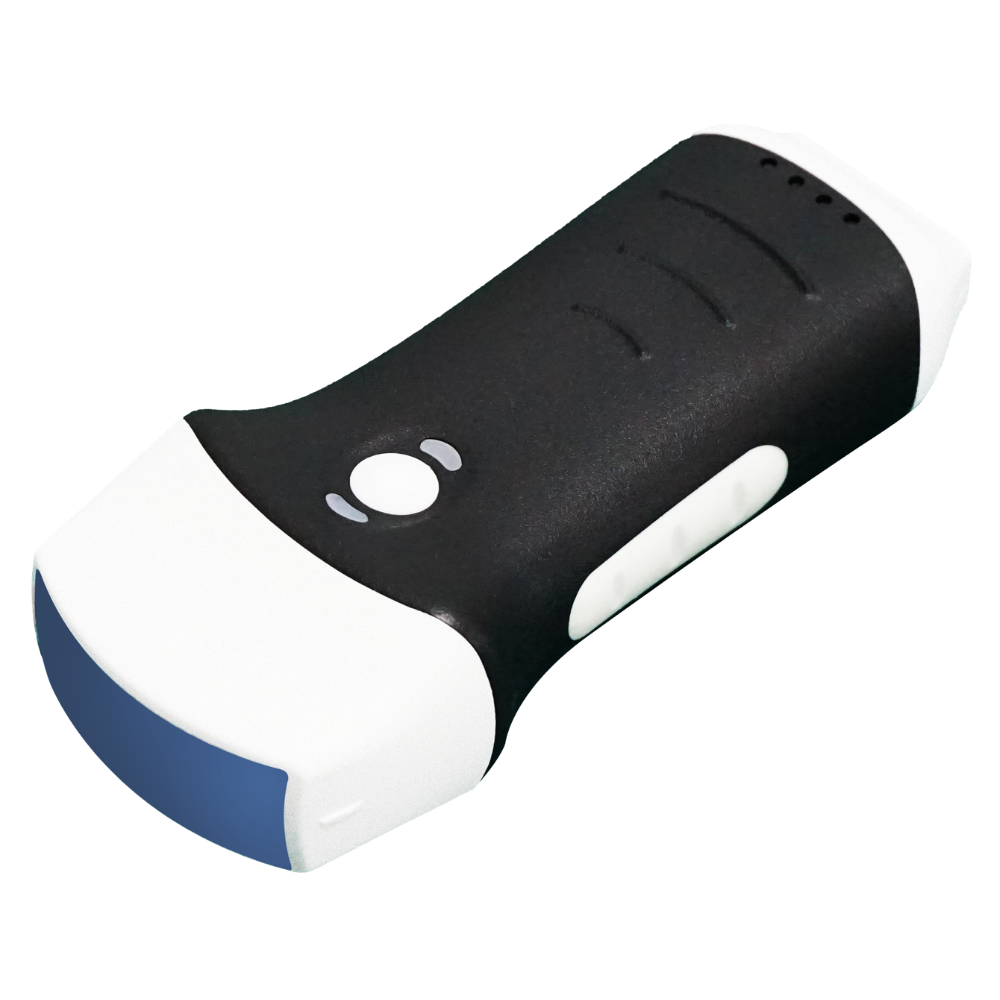

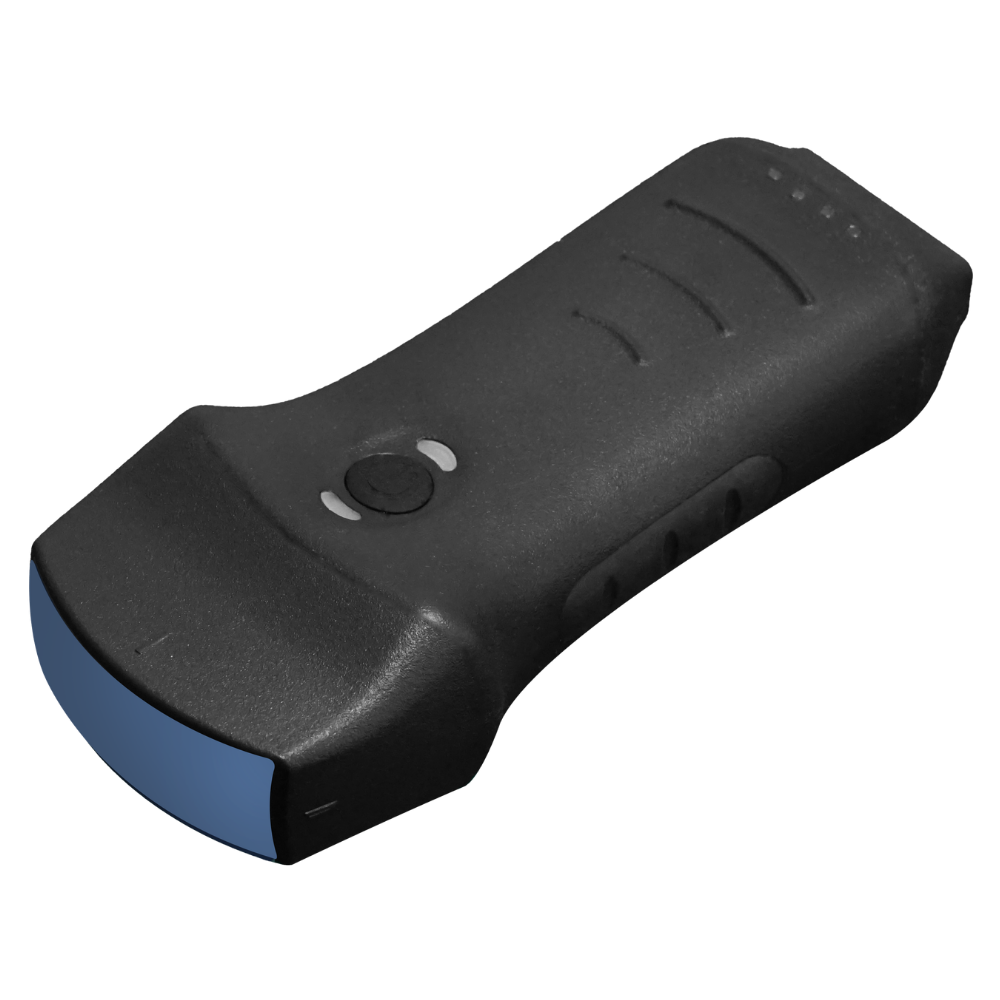

Wireless dual head convex+linear+Cardiac probe
WiFi & USB

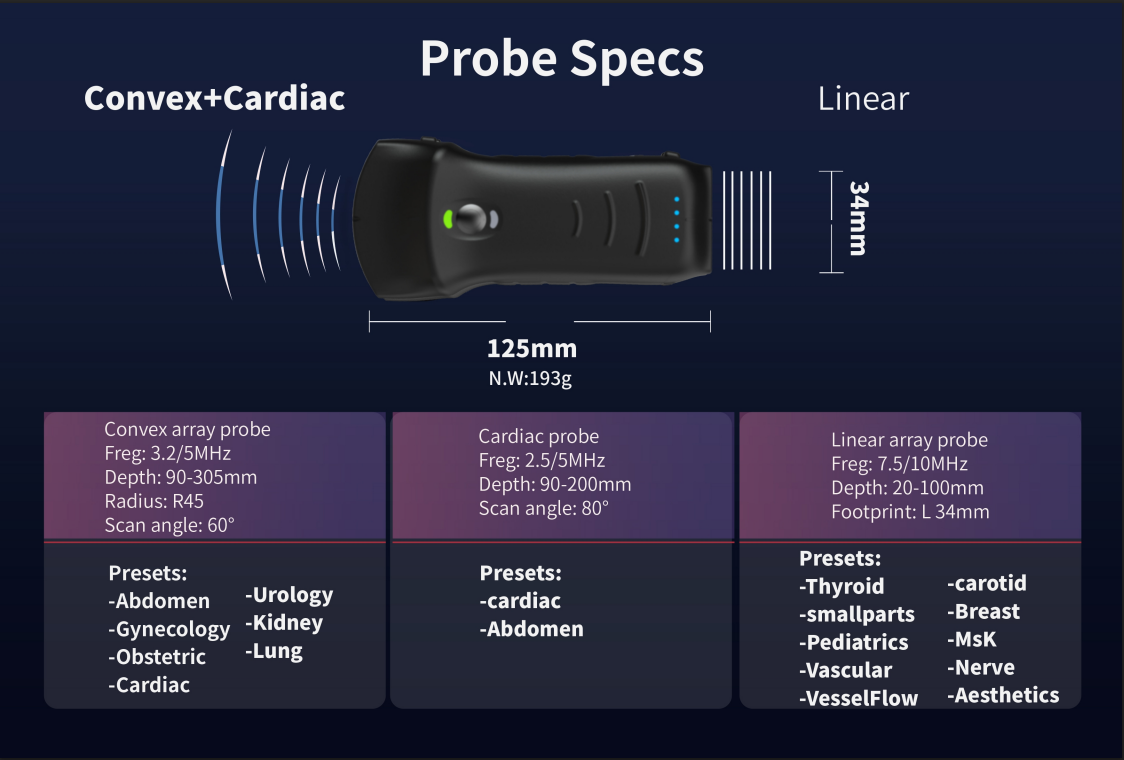

3.2/5Mhz, 7.5/I0Mhz，2.5/5Mhz
90-160-220-305mm , 20-40-60-100mm ，90-120-140-160mm
Dual 128
Android/IOS/Windows Tablet, Smart phone, PC

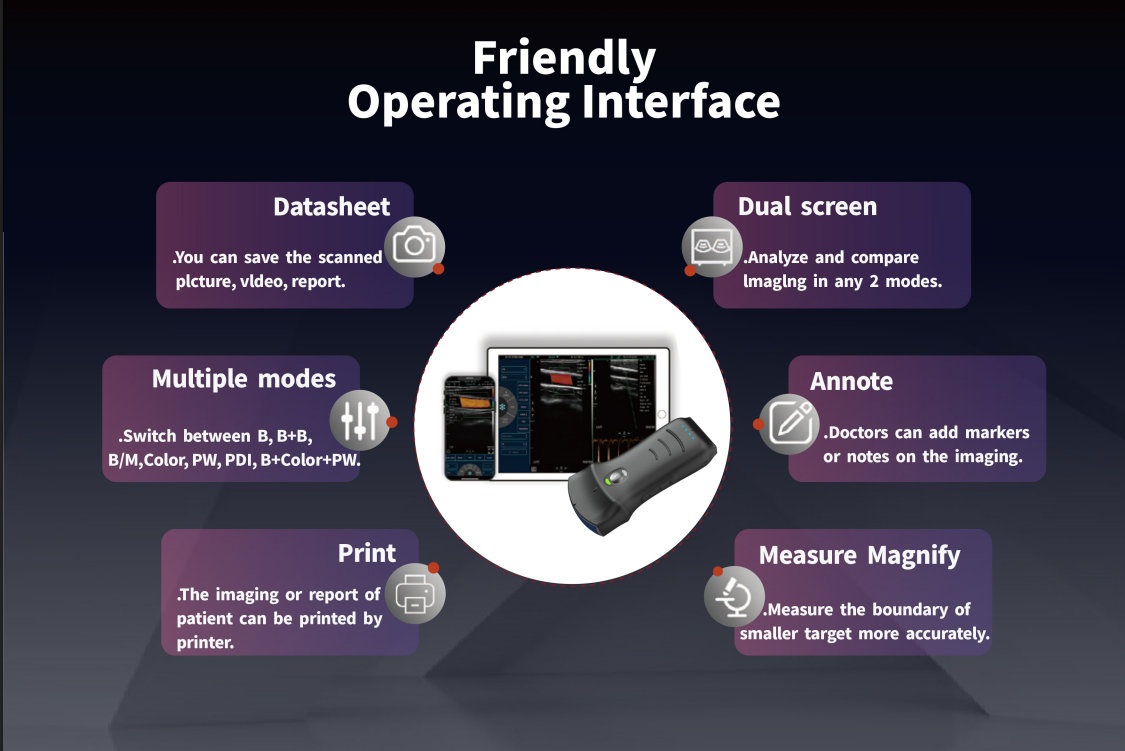

GN(gain), D(Depth), ENH(Enhancement), DR(Dynamic range), F(Frequency), FocusPos, PRF, WF, Mode, 8TGC, Biopsy, Annote, Page left/right/up/down.
186g
IP68

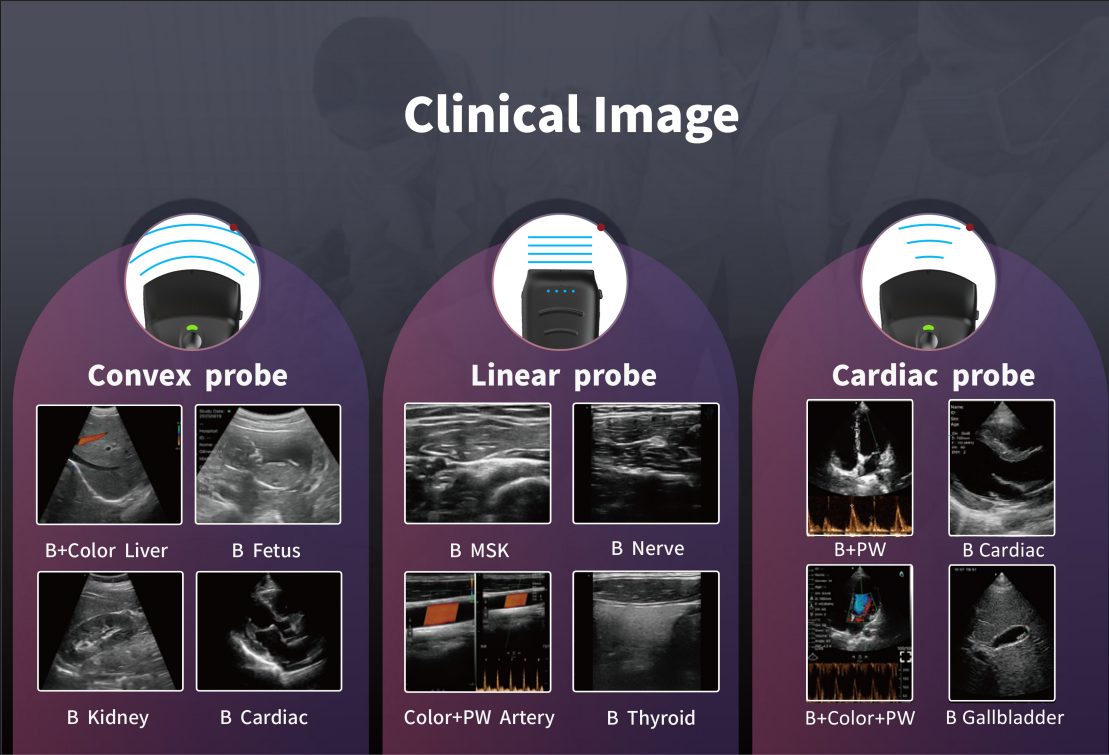

B, B+B, B/M, Color, PW, PDI, B+Color+PW
256 level
24s/f
100, 200, 500, 1000 optional
Abdomen, GYN, OB, Cardiac,Urology, Kidney, Lung,User1, User2;
Thyroid, Small parts, Pediatrics, Vascular, Carotid, Breast, Msk, Nerve, Aesthetics, Vessel Flow, User1,User2;
B: Length, Area/Circumference, Angle, Trace, Distance GA(CRL,BPD,GS,FL,HC,AC)EFW(BPD,FL)
B+M: Heart rate, Time, Distance, LVID(LVIDd, LVIDs, EF, SV)B+PW: Velocity, Heart rate(2), S/D, Depth.
Automatic Vessel Flow Measure：PS, ED, TAMAX, TAMEAN, PI, RI, S/D, DIAM, FL
Yes
Built-in WiFi, 802.11g/20MHz/5G/450Mbps
4hours (Working time), 72 hours(Stand by time)
64
Yes (by engineer)
wireless charger
40-110Db
Yes
By built-in 1 Lithium batteries 2800 mAh.
Chinese, Ukrainian, German, English, Russian, France, Italian, Spanish, Portuguese (Brazil)
Who Is It For?
The C10TX is designed for clinicians who need maximum versatility in one portable scanner. By combining Linear, Convex, and Cardiac imaging modes, it supports superficial, abdominal, vascular, musculoskeletal, cardiac, and point-of-care assessments in a single handheld device. Manufacturer and reseller materials position it as a multi-specialty scanner for whole-body and bedside use.
Use Cases for 3 in 1 Linear Convex Color Doppler with Cardiac Functions
One Portable Scanner for Everyday Clinical Imaging Across Multiple Specialties.
1. Abdominal Assessments

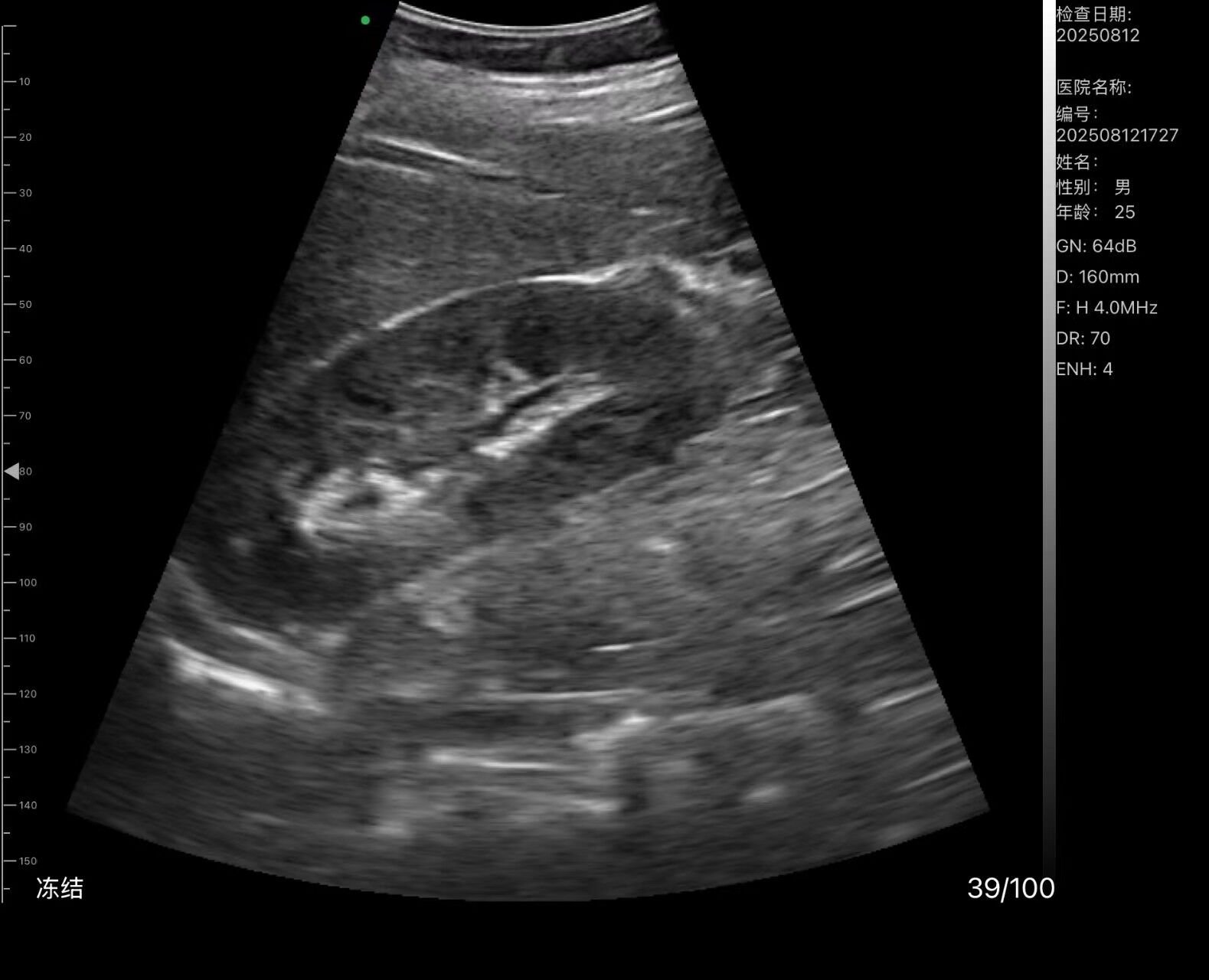

Use the convex probe mode for abdominal imaging including liver, gallbladder, kidneys, bladder, bowel, and general abdominal evaluations. Ideal for clinics, GPs, urgent care, and bedside assessments.
2. Cardiac Scanning
Use the cardiac mode for focused heart assessments, basic echocardiography views, and rapid bedside cardiac evaluation. Helpful for emergency medicine, acute care, and point-of-care decision-making.
3. Musculoskeletal (MSK) Imaging
Use the linear probe mode to assess muscles, tendons, ligaments, joints, bursae, and soft tissue injuries. Ideal for physiotherapy, sports medicine, rehabilitation, orthopaedics, and pain clinics.
4. Vascular & Blood Flow Assessment
With Colour Doppler, PW, and PDI modes, clinicians can assess superficial vessels, circulation, carotid structures, and blood flow patterns to support diagnosis and treatment planning.
5. Lung & Chest Examinations
Useful for point-of-care lung scanning to support rapid assessment of pleural fluid, lung sliding, and selected respiratory presentations in acute or community settings.
6. Urology & Bladder Assessments
Suitable for kidney, bladder, and urinary tract imaging where a portable scanner is needed for fast bedside or clinic-based assessments.
7. Obstetric & Gynaecology Use
Supports selected obstetric and gynaecology imaging applications such as pelvic assessments, early pregnancy views, and women’s health evaluations where appropriate training is in place.
8. Thyroid, Breast & Small Parts Imaging
Use the linear mode for superficial structures including thyroid, breast tissue, lymph nodes, and small parts examinations requiring higher detail imaging.
9. Guided Procedures & Point-of-Care Use
Portable design makes it ideal for bedside use, outpatient clinics, community care, and image-guided procedures where fast, flexible imaging is valuable.
10. Education & Training
Excellent for teaching anatomy, ultrasound basics, clinical skills, and multi-specialty scanning in universities, academies, and training environments.

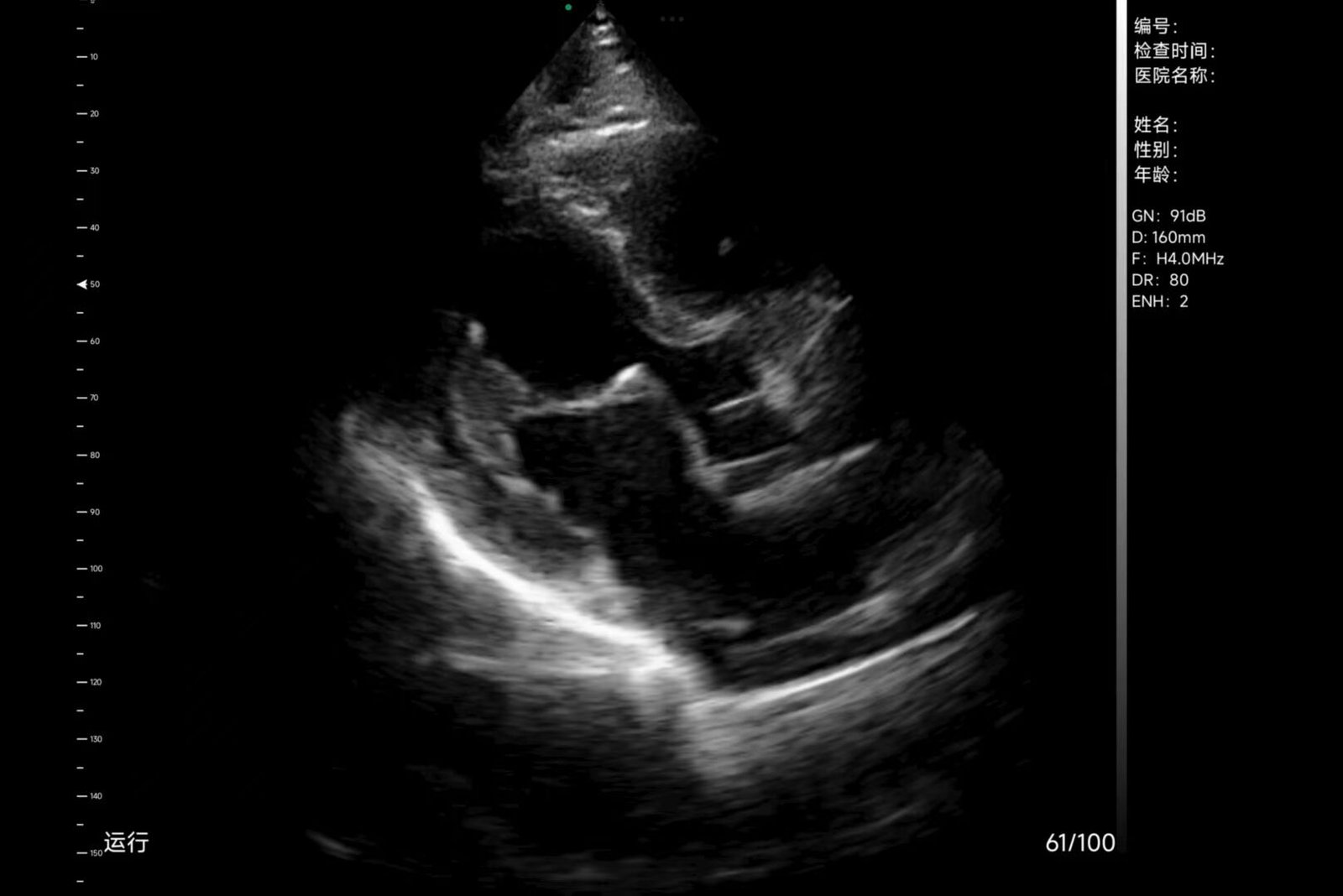

CARDIAC
Angular artery

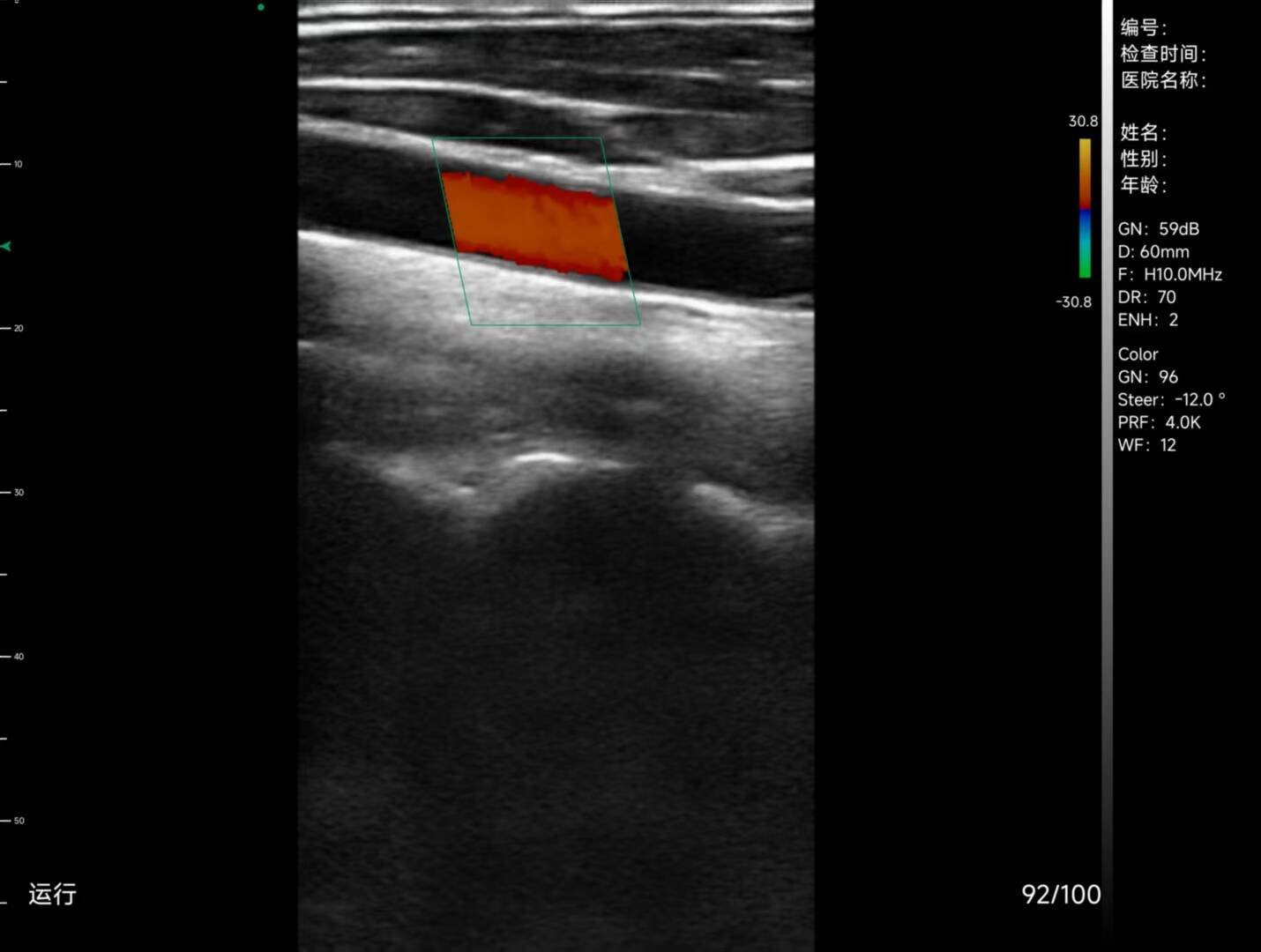

LINEAR
Experience Precision Imaging in Real Time
4 Distinctive Beautiful Colours
