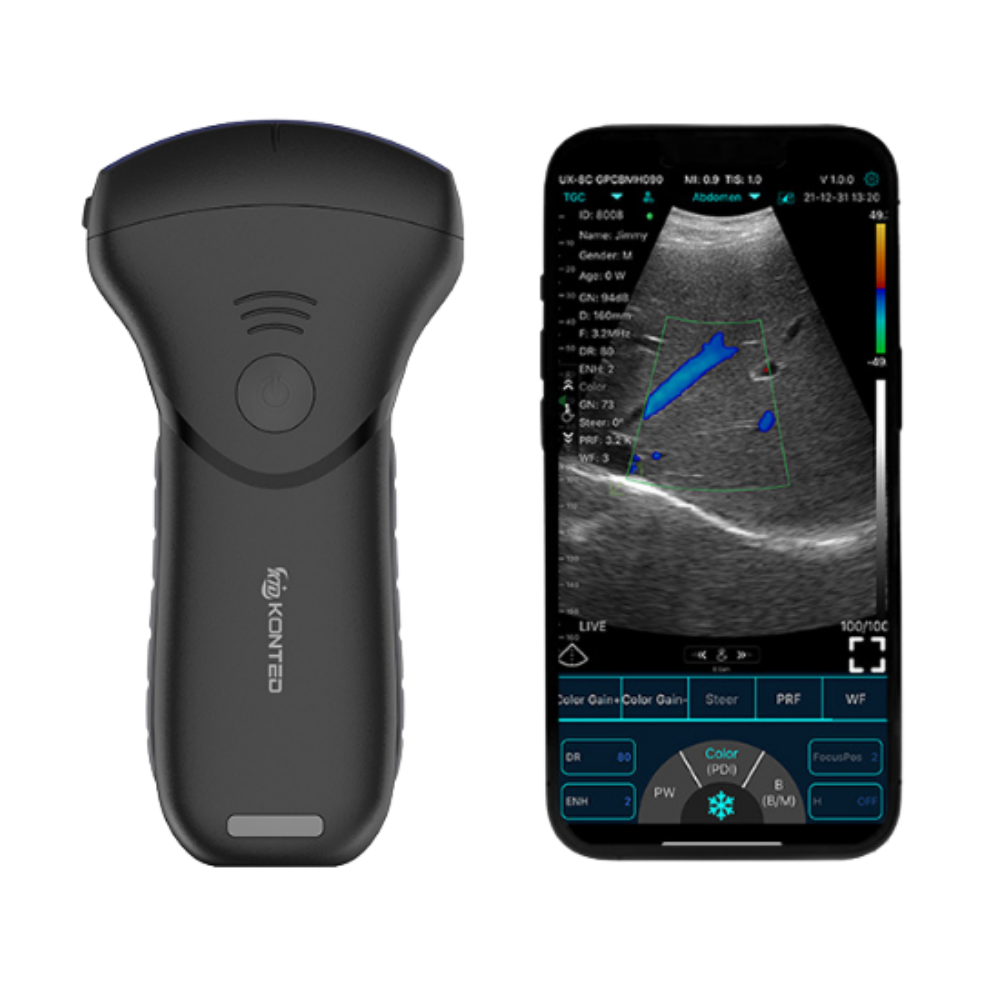

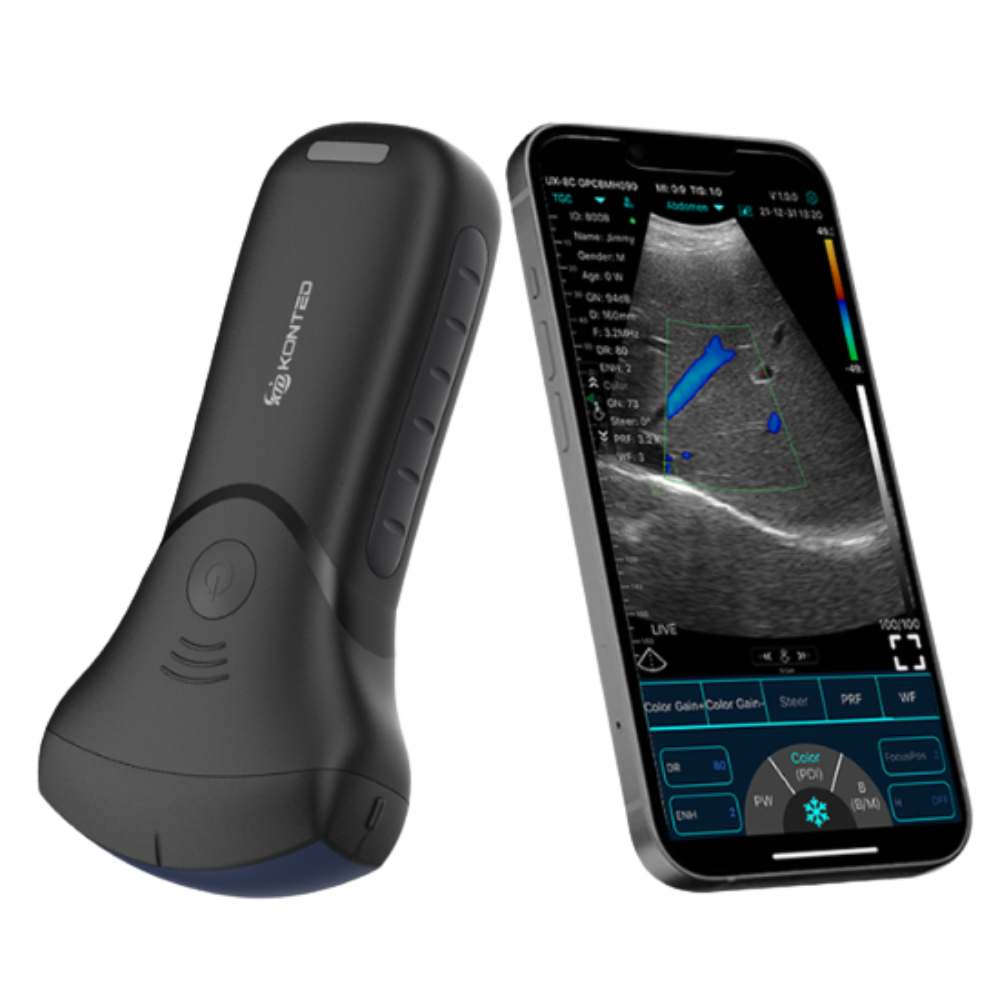

Portable Convex Ultrasound for Abdominal, Pelvic & Clinical Imaging

The Convex Ultrasound Probe delivers clear deep-tissue imaging for abdominal, obstetric, gynaecology, urology, kidney, and point-of-care assessments - combining wireless portability, colour Doppler capability, and professional performance wherever you work.

REQUEST A DEMO
REQUEST A QUOTE

Unlock Clear, Deep Imaging with the Convex Ultrasound Probe – Trusted Versatility for Everyday Diagnostics

The Convex Ultrasound Probe is your go-to solution for high-resolution abdominal and pelvic imaging, delivering deep tissue visualization with exceptional clarity. Designed for both general practitioners and specialists, this portable, user-friendly probe is perfect for OB/GYN, urology, emergency medicine, and internal diagnostics.

Whether you’re performing liver scans, monitoring fetal development, or assessing kidney and bladder health, the Convex Probe offers wide scanning coverage and precise results - all from a compact, reliable device.

6 Key Benefits

1. Deep Tissue Imaging with Excellent Clarity

The convex probe design and 3.5–5 MHz frequency provide reliable penetration for abdominal, pelvic, renal, bladder, and internal organ assessments with clear diagnostic imaging.

2. Broad Clinical Versatility

Suitable for abdominal, gynaecology, obstetric, urology, kidney, lung, and point-of-care applications, making it a valuable scanner across multiple specialties.

3. Portable Wireless Freedom

With WiFi connectivity to iOS, Android, and Windows devices, clinicians can scan anywhere without bulky consoles or fixed systems.

4. Colour Doppler for Greater Diagnostic Insight

Built-in Colour Doppler, PW, and PDI modes help assess blood flow and vascular patterns, supporting faster and more informed clinical decisions.

5. Long Battery Life for Busy Practices

Dual-battery performance delivers up to 4 hours continuous scanning and extended standby time, helping practitioners stay productive throughout the day.

6. Built for Real Clinical Environments

With IP68 waterproof protection, anti-slip grip, cooling coating, and lightweight portable design, the scanner is made for dependable everyday use.

REQUEST A DEMO
REQUEST A QUOTE

Specifications

(Click a feature to expand)

Model

C10MT Pro

Probe Type

Wireless Convex probe

Elements

Dual 192

Frequency

3.5-5Mhz

Scan Depth

90-160-240-300mm

Dimension

140*60*30mm

Presets

Abdomen, Gynecology, Obstetric, Cardiac, Urology, Kidney, Lung, User1, User2

Host

IOS/Android/Windows, Tablet, Smart phone, PC

Connection

WiFi

Software Adjustable Parameters

GN(gain), D(Depth), ENH(Enhancement), DR(Dynamic range), F(Frequency), FocusPos, PRF, WF, Mode, 8TGC, Biopsy, Annote

Measurement

B: Length, Area, Circumference, Angle, Trace, Distance

B+M: Heart rate, Time, Distance

B+PW: Velocity,Heart rate(2), S/D, Depth

Display Mode

B, B/M, Color, PW, PDI, B+B

Playback Frame

100, 200, 500, 1000 optional



Gain

40-110Db

Language

Chinese, Ukrainian, German, English, Russian, France, Italian, Spanish, Portuguese (Brazil)

Power

Lithium Battery Capacity:4400mAh

Wifi Type

Built-in WiFi, 802.11g/20MHz/5G/450Mbps

Channel

64

Frame

24s/f

Image Save

jpg, avi, Mp4 and DICOM format

Cooling coating

Yes



Battery Last

4hours (Working time), 72hours (Stand by time)

Battery Replaceable

Yes (by engineer)

Charger

Wireless charger, USB cable

Anti-skid design

Yes - 4 sides

Weight

230g

Who Is It For?

Use Cases for C10MT Pro Convex Ultrasound Probe

1. Abdominal Examinations

Ideal for scanning the liver, gallbladder, spleen, pancreas, bowel, and abdominal structures to support routine assessments, pain investigations, and diagnostic decision-making.

2. Women’s Health & Gynaecology

Suitable for pelvic and lower abdominal imaging to support gynaecology consultations, reproductive health assessments, and women’s health evaluations.

3. Obstetric Imaging

Useful for selected pregnancy and obstetric assessments where portable imaging is required, supporting flexible care in clinics and community settings.

4. Urology & Bladder Assessments

Helps clinicians evaluate the bladder, kidneys, urinary tract, and lower abdominal region for urological investigations and urinary health concerns.

5. Kidney & Renal Scanning

Supports assessment of the kidneys and surrounding structures, helping clinicians investigate pain, obstruction, hydronephrosis, or renal abnormalities.

6. Point-of-Care Ultrasound (POCUS)

Ideal for bedside and rapid assessments in urgent care, emergency medicine, GP practices, wards, and community healthcare where immediate imaging supports faster decisions.

7. Lung & Chest Applications

Can be used for selected lung and pleural assessments, including fluid detection and focused respiratory examinations.

8. Internal Medicine & General Practice

A valuable tool for clinicians who need portable imaging for day-to-day abdominal, pelvic, urinary, and general internal assessments.

9. Mobile & Community Clinics

Wireless portability makes it suitable for care homes, outreach services, home visits, remote healthcare settings, and mobile clinics.

10. Education & Training

Excellent for teaching abdominal anatomy, ultrasound fundamentals, women’s health imaging, and point-of-care scanning skills.

REQUEST A DEMO
REQUEST A QUOTE

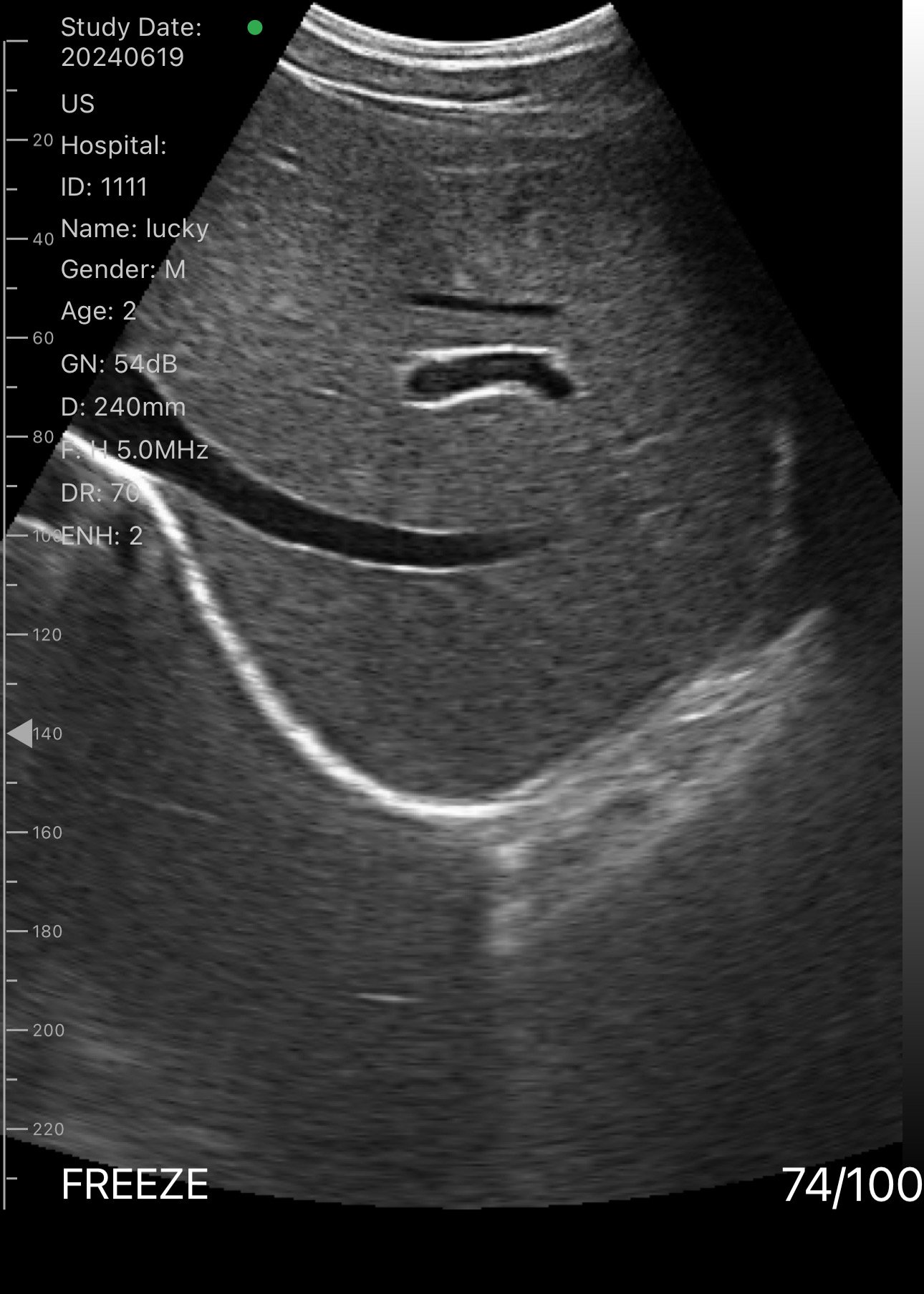

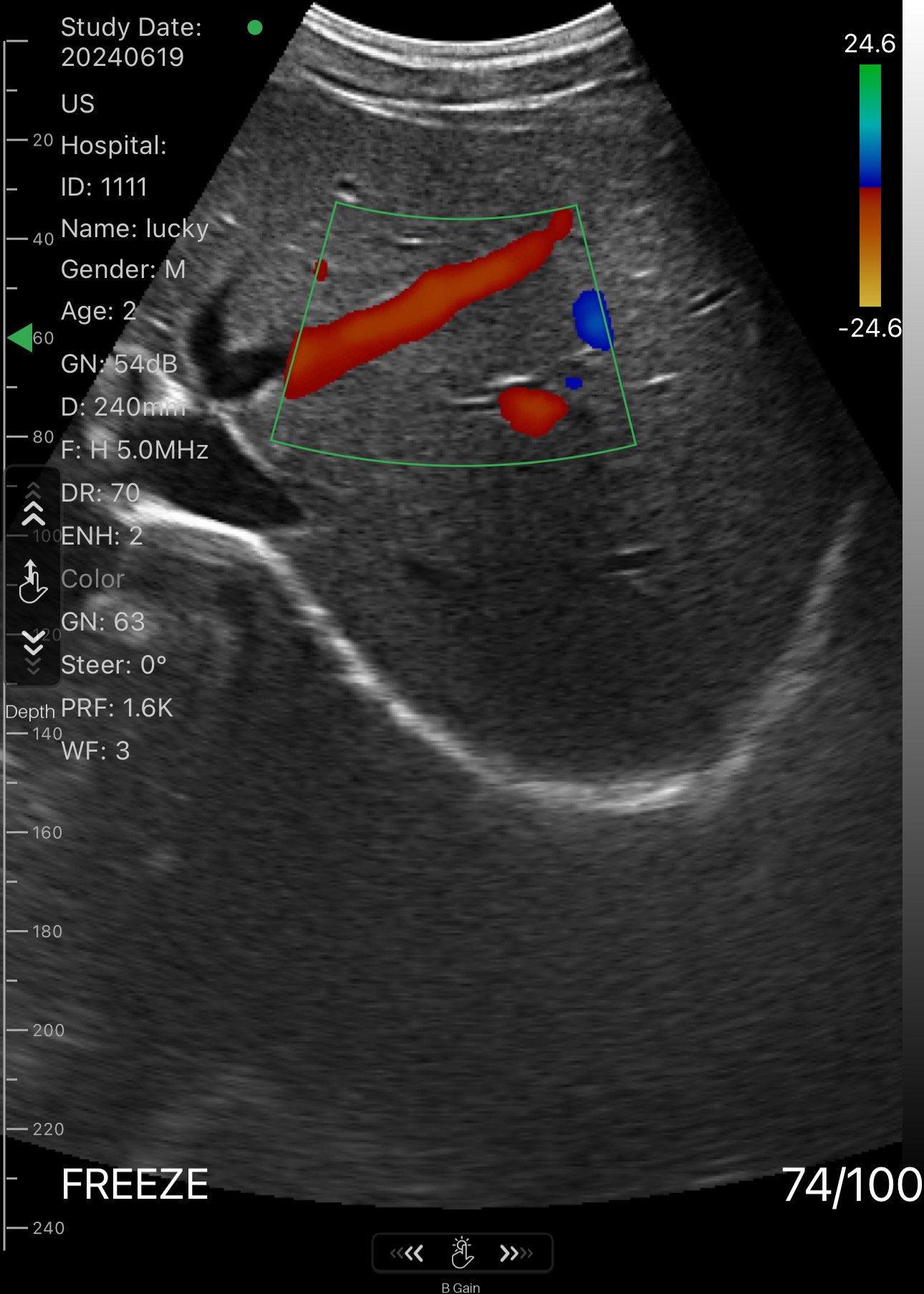

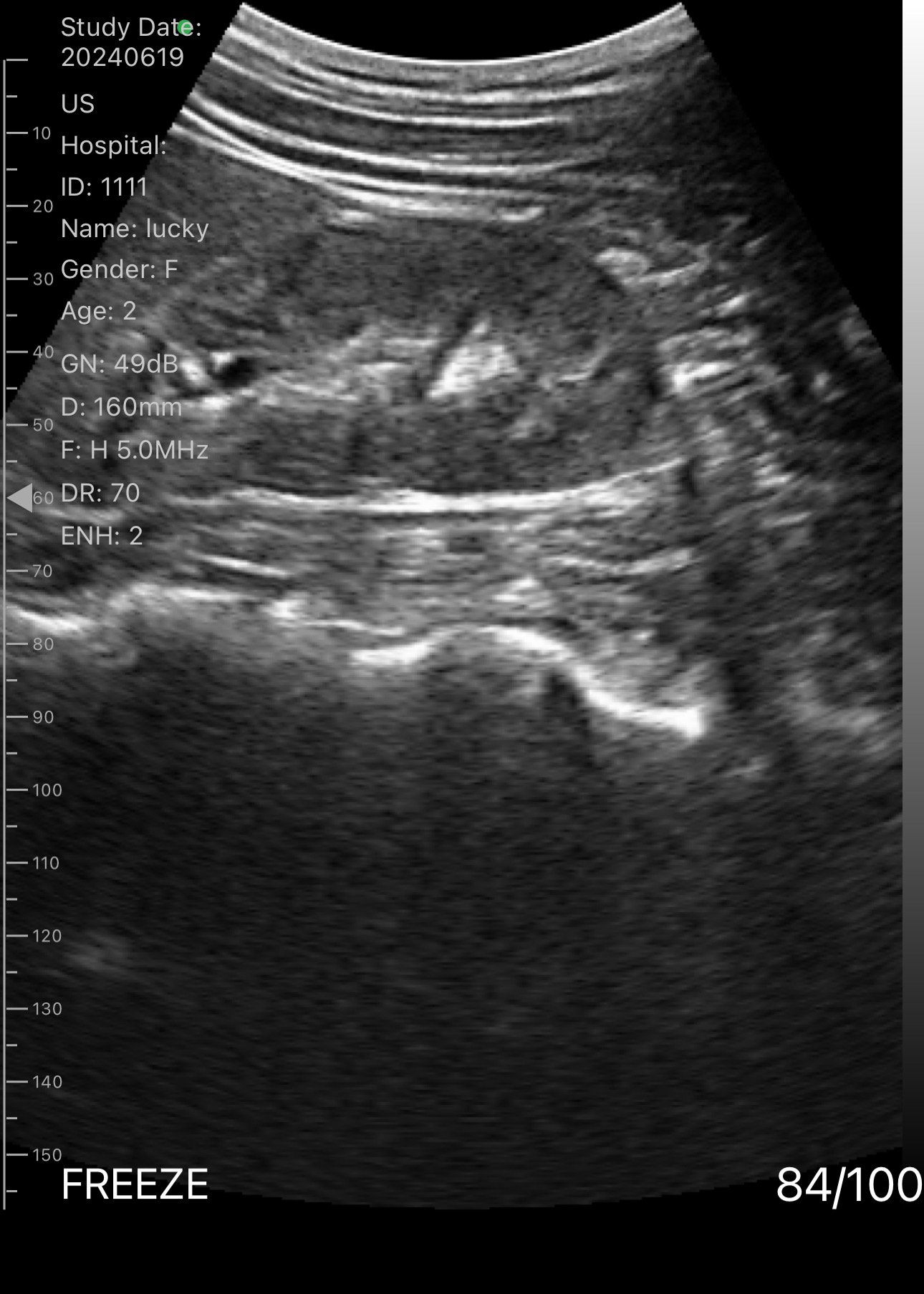

Clinical Images
