One Portable Scanner for Women’s Health, Abdominal & Cardiac Imaging

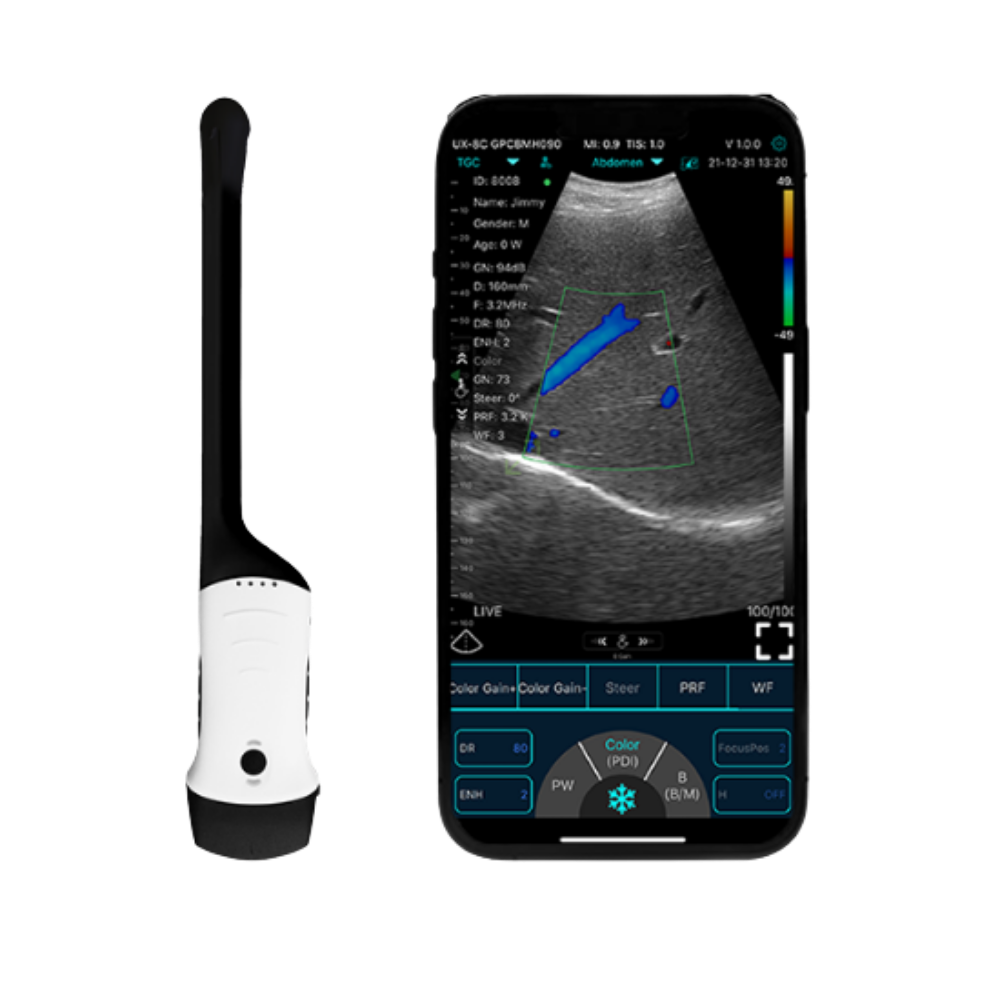

The Dual-head Multipurpose Ultrasound Scanner (Convex + Endocavity + Cardiac Probe) combines Convex, Endocavity, and Cardiac capability in a premium wireless system - giving clinics greater versatility, faster diagnosis, and more value from a single portable scanner.

REQUEST A DEMO
REQUEST A QUOTE

The Dual-head Multipurpose Ultrasound Scanner (Convex + Endocavity + Cardiac Probe) is designed for clinicians who need greater versatility, faster diagnosis, and more value from one portable imaging system.

Combining Convex, Endocavity, and Cardiac capabilities in a single device, it allows you to perform abdominal, pelvic, women’s health, fertility, obstetric, bladder, and focused cardiac assessments without relying on multiple scanners. It is the smart solution for modern clinics that want to expand services while reducing equipment costs and complexity.

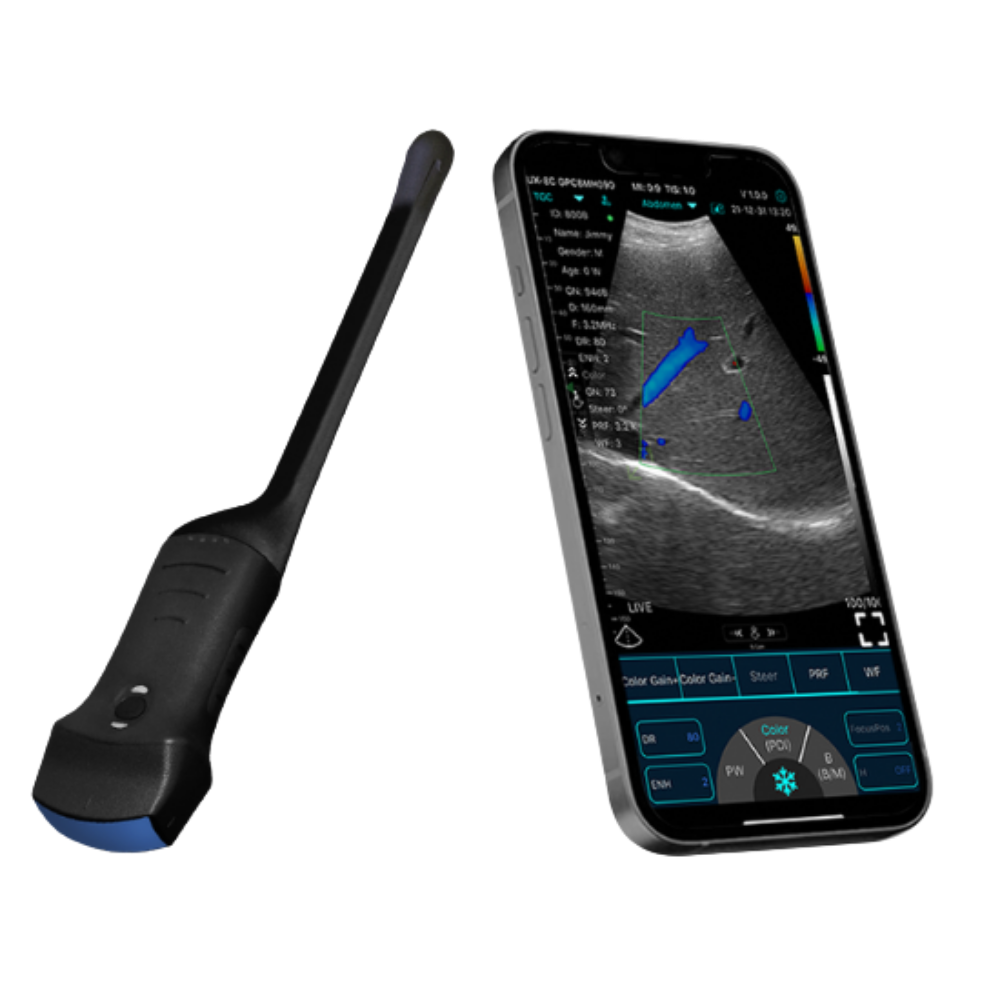

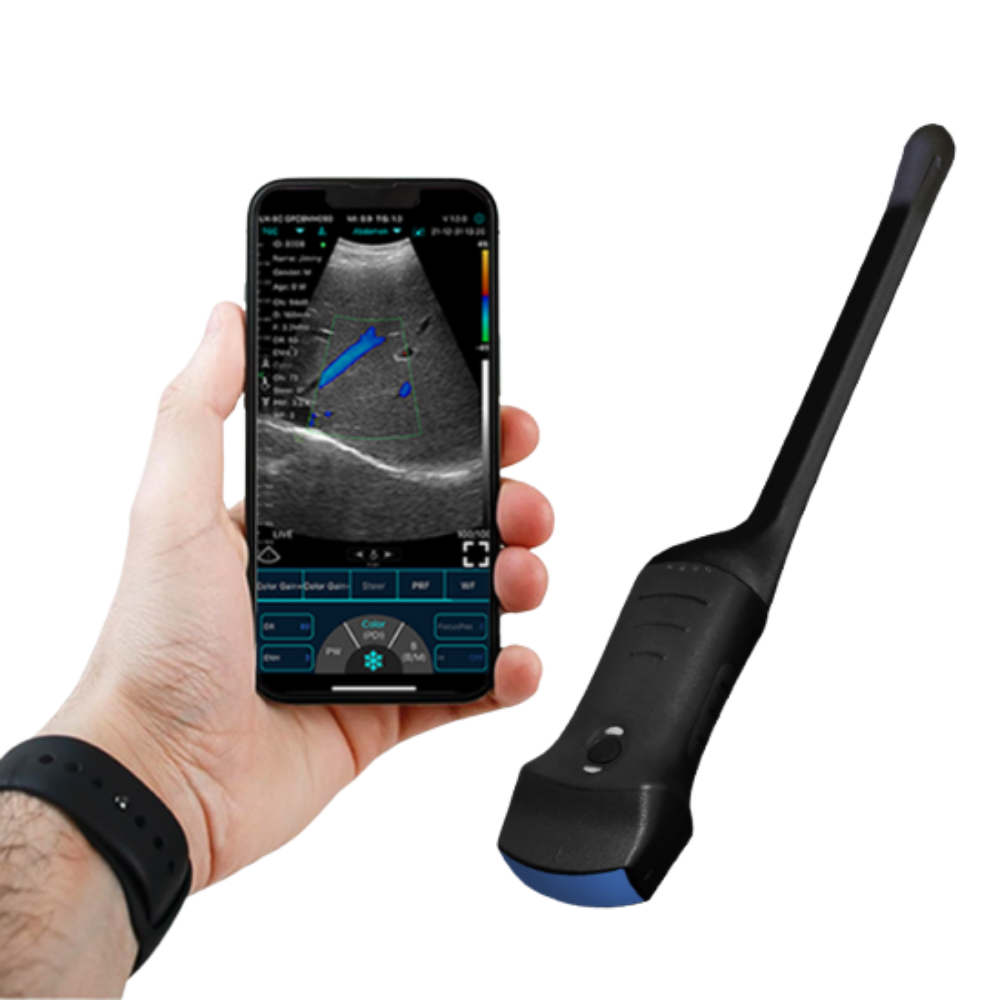

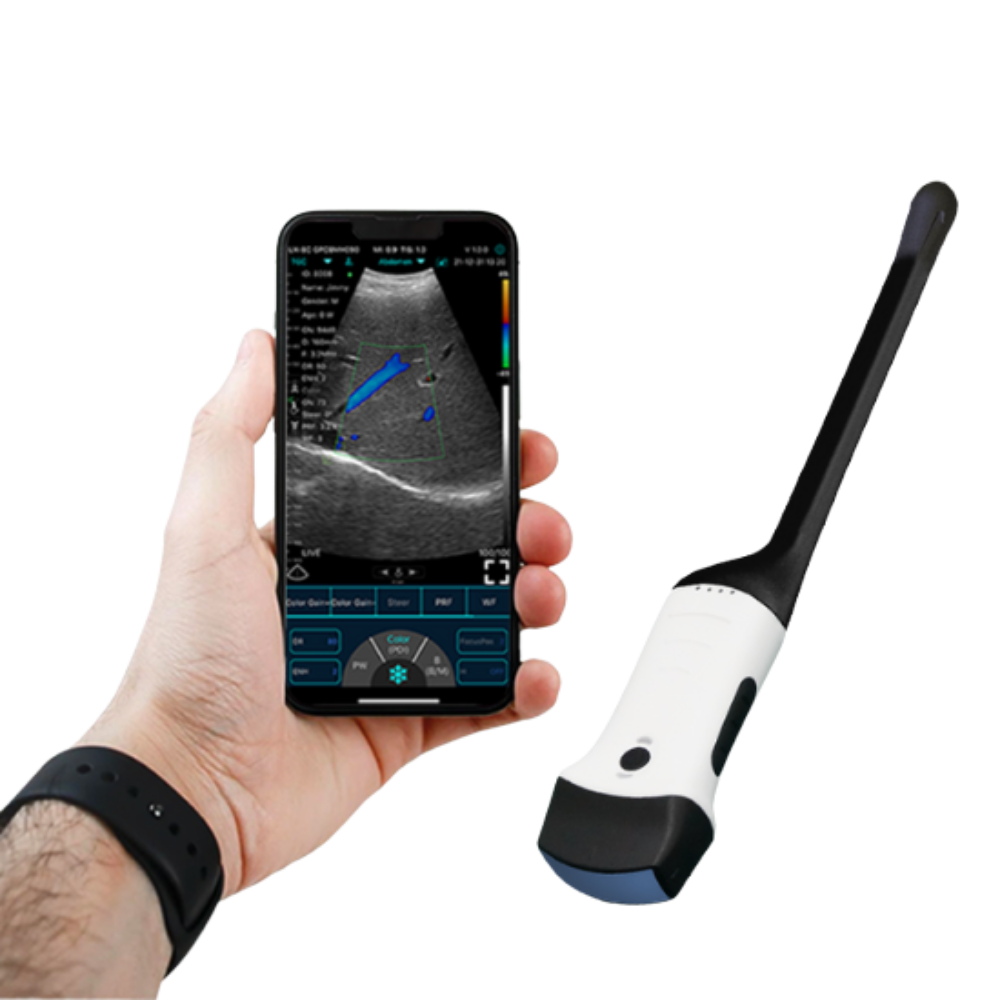

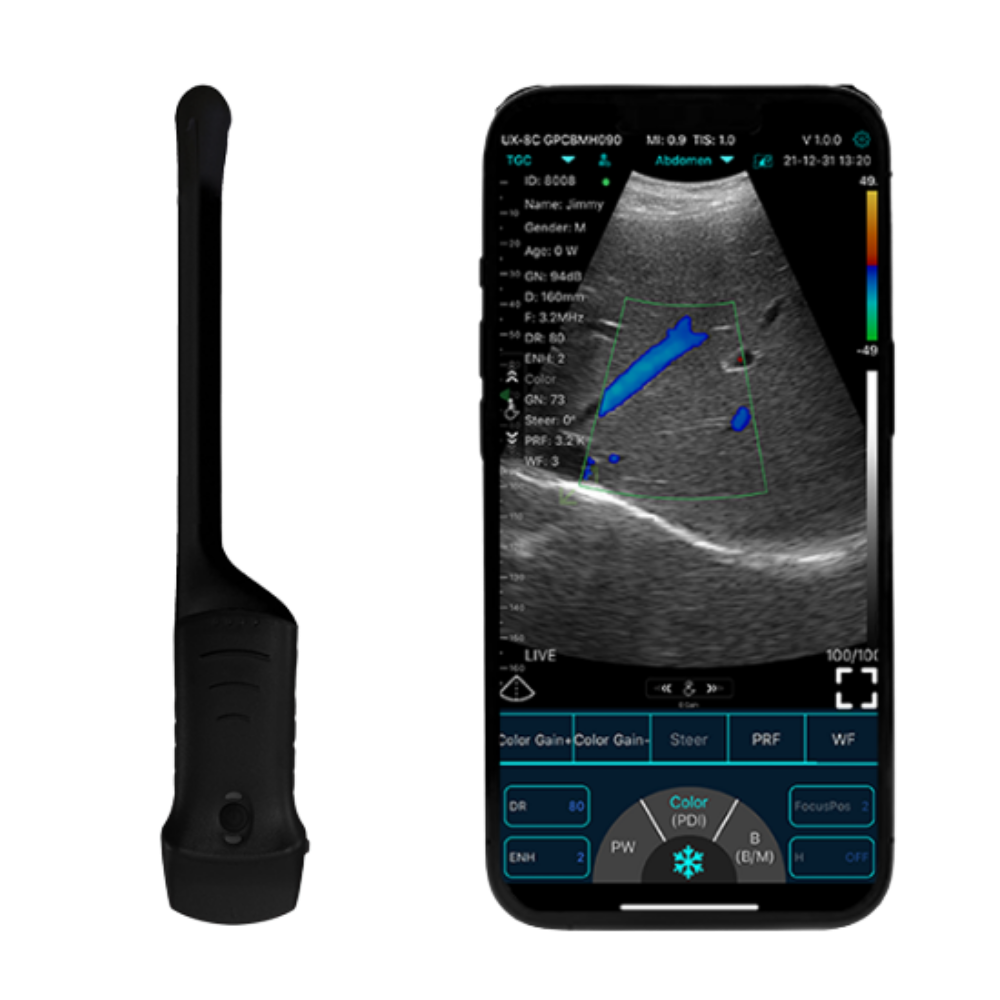

Compact, wireless, and compatible with iOS, Android, and Windows devices, this scanner transforms your tablet, smartphone, or PC into a powerful mobile ultrasound platform.

Whether you run a women’s health clinic, fertility centre, private practice, hospital department, or community diagnostic service, it delivers the flexibility, portability, and professional imaging performance needed to work with confidence and provide a higher level of patient care.

Specification

(Click a feature to expand)

Model

C10RC

Probe Type

Wireless dual head convex + TV probe

Software System

Android. IOS. Windows

Probe Button

-Power on/off

-Freeze/unfreeze
-Switch scanning probe

Connection

Wi-Fi
USB

Wifi Type

802.11n/20MHz/
2.4G/5G

Frequency

Convex：3.2/5Mhz
Cardiac：2.5/5Mhz
Endocavity：6.5/8Mhz

Scan Depth

Convex：90-160-220-305mm
Cardiac：90-120-140-160mm
Endocavity：20-40-60-100mm

Channel

32

Scan Angle

80°/149°

Elements

128

Dimensions

310x54x30mm

Weight

251g

Anti-Skid Design

4 sides of probe

Waterproof Grade

IP68

Display Mode

B
B+B
B+M
Color

PW/CW
PDI
B+Color+PW

Controls & Display Features

Dual & Full screen Display => YES
Software Control => YES
B GN (Gain) => YES
Color GN (Gain) => YES
D (Depth) => YES
ENH (Enhancement) => YES
DR (Dynamic Range) => YES
H (harmonic) => YES
Focus => YES
8 TGC => YES
Mid-Line => YES
An note => YES
Page Left/Right Up/Down => YES

Body Mark

Yes

Dicom

Yes



Image storage

JPEG, MP4, Dicom

Clip Loop

Automatic / manual
100-200-500-1000 frame

Frame rate

18~24 F/S



Presets

Abdomen, Gynecology, Obstetric, Cardiac, Urology, Kidney, Lung, User1, User2

Abdomen, Gynecology, Obstetric, Cardiac, Urology, Kidney, Lung,Vessel flow, User1

Measures

B: Length, Area/Circumference, Angle,Trace,Distance,GA(CRL,BPD,GS,FL,HC,AC), EFW(BPD,FL)

B+M: Heart Rate, Time, Distance, LVID( LVIDd, LVIDs, EF, SV)

B+PW: Velocity, Heart Rate(2), S/D, Depth

Automatic Vessel Flow Measure：PS, ED, TAMAX, TAMEAN, PI, RI, S/D, Diam, Flow

Measure Magnify

Yes



Built in cooling coating

Yes



Working While charging

Yes



Battery

Built-in 2 rechargeable High capacity Lition batteries 3.8 V, 2600 mAh, 9.88 Wh

Power Consumption

3 W (Live) / 1 W (freeze)

Continuous hours of scanning

4h
72h Ultra-long standby

Recharge time

3~4h

Charging

Type-C USB
Wireless charging

Language

Chinese, Ukrainian, German, English, Russian, France, Italian, Spanish, Portuguese (Brazil)



Shell Colours

4 styles

REQUEST A DEMO
REQUEST A QUOTE

Who Is It For?

Designed for clinicians and healthcare organisations that need versatile imaging across multiple specialties, this scanner combines women’s health, abdominal, pelvic, cardiac, and point-of-care capability in one portable device. Ideal for private clinics, hospitals, fertility centres, GP practices, and mobile diagnostic teams looking to expand services with confidence and efficiency.

Use Cases for Dual-head Multipurpose Ultrasound Scanner (Convex + Endocavity + Cardiac Probe)

1. Gynaecology & Women’s Health Imaging

Ideal for assessing the uterus, ovaries, cervix, endometrium, pelvic structures, cysts, fibroids, and reproductive health conditions in clinics and hospitals.

2. Fertility & IVF Monitoring

Useful for follicle tracking, ovarian monitoring, pelvic assessments, treatment planning, and reproductive pathway support in fertility clinics.

3. Pregnancy & Obstetric Scanning

Supports pregnancy confirmation, gestational measurements, fetal position checks, growth monitoring, and antenatal assessments.

4. Pelvic & Endocavity Examinations

The endocavity probe is designed for high-resolution internal pelvic imaging, helping clinicians evaluate structures with greater clarity.

5. Abdominal Imaging

Use the convex side for scanning the liver, kidneys, bladder, gallbladder, spleen, bowel, and abdominal organs during routine or focused examinations.

6. Urology & Bladder Assessments

Suitable for evaluating the bladder, kidneys, urinary tract, pelvic organs, and lower abdominal symptoms.

7. Cardiac & Focused Heart Assessments

Includes cardiac capability for focused bedside heart imaging, rapid cardiac checks, and selected point-of-care cardiac evaluations.

8. Emergency & Urgent Care

Useful for FAST-style abdominal scans, bladder checks, pelvic assessments, and rapid bedside diagnostics where quick decisions are needed.

9. General Practice & Private Clinics

Enables clinics to offer same-day abdominal, pelvic, pregnancy, bladder, and point-of-care imaging from one portable system.

10. Hospitals, Community & Mobile Services

Excellent for wards, outpatient clinics, community healthcare teams, and mobile diagnostic providers who need flexible portable imaging.

11. Education & Training

Ideal for teaching pelvic, abdominal, obstetric, cardiac, and point-of-care ultrasound skills in universities and training centres.

One Portable Scanner for Women’s Health, Abdominal, Pelvic, Cardiac, and Point-of-Care Imaging.

REQUEST A DEMO
REQUEST A QUOTE

Choose from 2 Beautiful Colours
