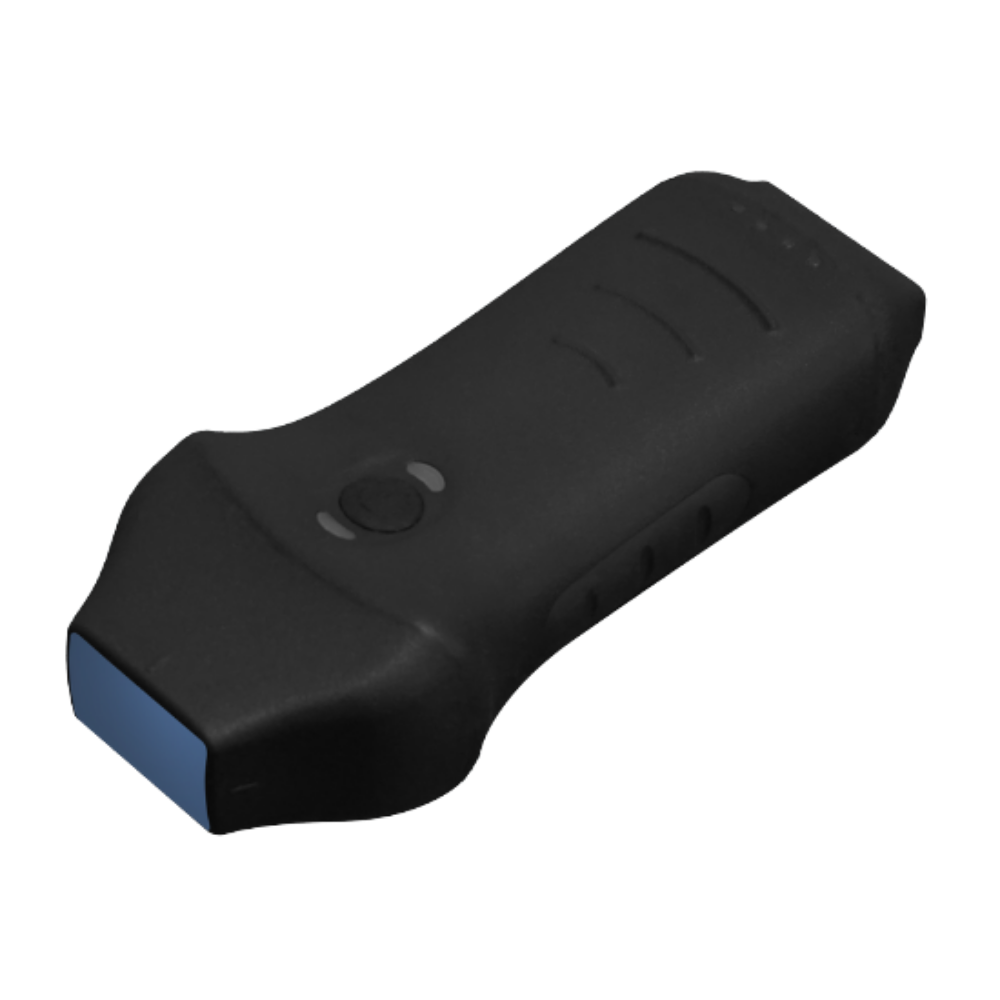

Dual-Head AI Ultrasound for Faster Clinical Decisions

The Dual-head Multipurpose Ultrasound Phased + Linear Probe combines phased array and linear imaging in one portable wireless scanner - enabling cardiac, vascular, MSK, nerve, and point-of-care assessments with greater speed, flexibility, and confidence.

REQUEST A DEMO
REQUEST A QUOTE

Experience Advanced Imaging with Our Dual-Probe Multipurpose Ultrasound Phased + Linear Probe

The Dual-Probes Multipurpose Ultrasound combines the power of two essential imaging modalities – Phased Array and Linear Array – into one versatile device, offering unmatched flexibility and diagnostic precision. Engineered for both point-of-care and comprehensive clinical use, this advanced ultrasound solution is ideal for cardiology, vascular access, musculoskeletal, abdominal, and small parts examinations.

With a single handheld unit, clinicians can seamlessly switch between the Phased probe for deep tissue and cardiac imaging, and the Linear probe for high-resolution superficial scans, enhancing diagnostic confidence and workflow efficiency. Compact, portable, and easy to use, this dual-probe system is perfect for busy hospital settings, clinics, emergency care, and remote locations.

6 Key Benefits

1. Phased + Linear Imaging in One Scanner

Combines phased array and linear probe technology in one portable device, allowing clinicians to switch between deep and superficial imaging without changing probes.

2. Broad Clinical Versatility

Ideal for cardiac, chest, vascular, MSK, nerve, thyroid, breast, small parts, guided procedures, and point-of-care applications across multiple healthcare settings.

3. Portable Wireless Convenience

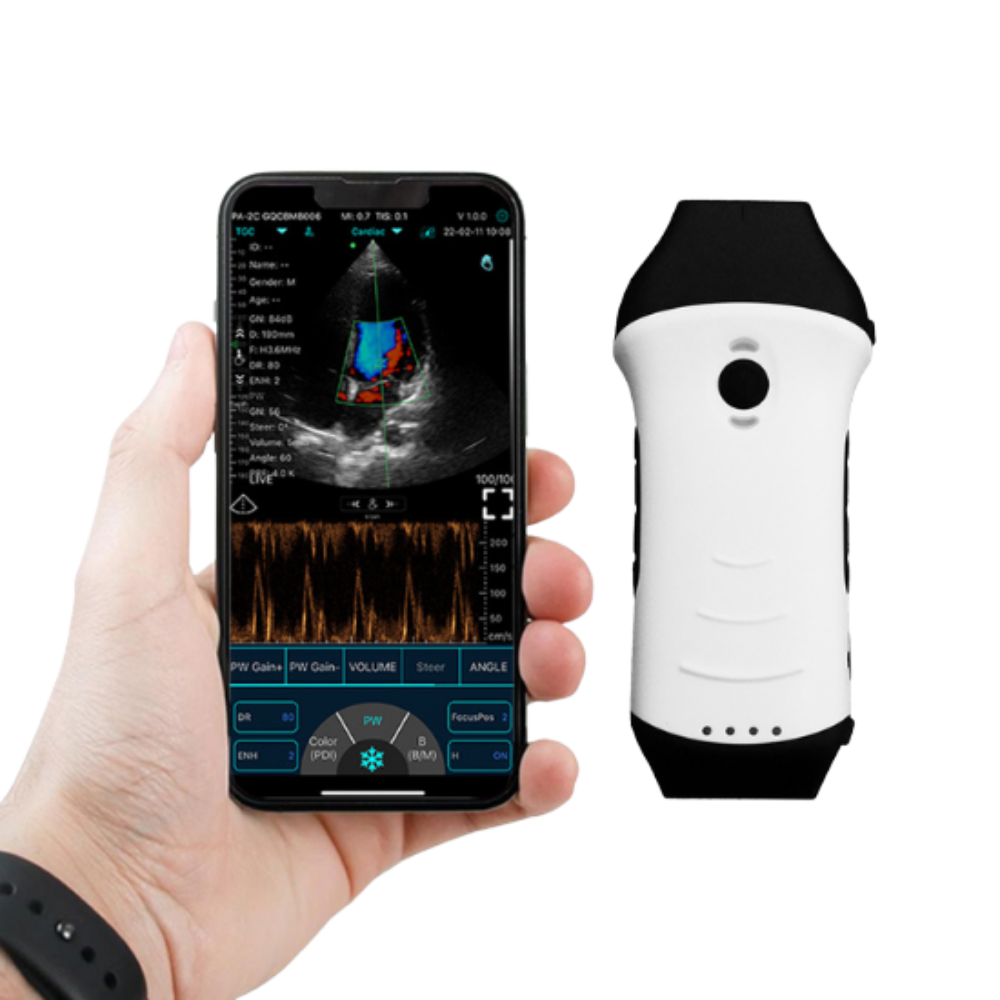

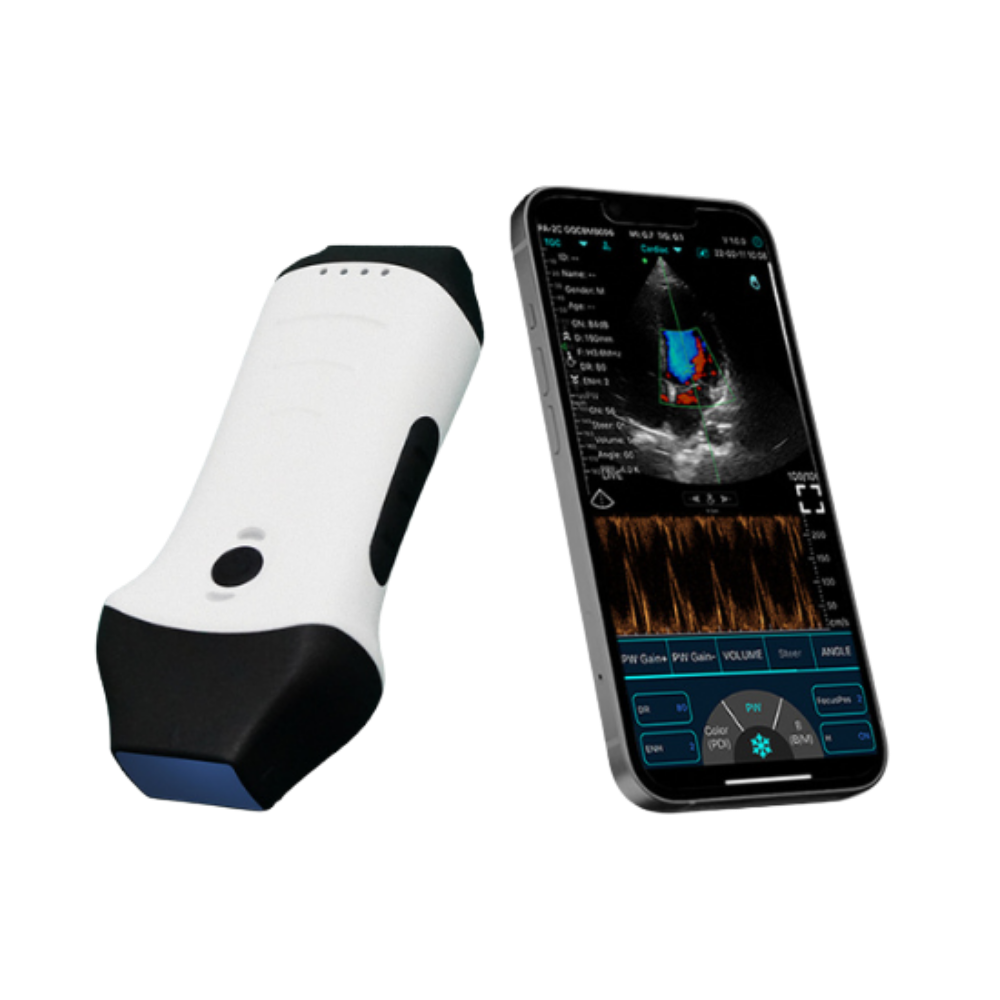

With WiFi and USB connectivity, the scanner works with smartphones, tablets, and PCs, giving clinicians professional imaging without bulky consoles or fixed systems.

4. HD Colour Doppler Imaging

Built-in Colour Doppler, PW, and PDI modes help visualise blood flow and vascular structures, supporting faster and more informed diagnosis.

5. Faster Workflow & Greater Efficiency

Two probe types in one scanner reduce the need for multiple devices, save time between examinations, and improve workflow in busy clinical environments.

6. Long Battery Life & Flexible Charging

Powered by dual rechargeable batteries with up to 4 hours continuous scanning, plus USB and wireless charging options for reliable all-day use.

REQUEST A DEMO
REQUEST A QUOTE

Specifications

(Click a feature to expand)

Model

C10HL

Probe Type

Wireless dual head phased+linear probe

Elements

Dual 128

Frequency

2.2-3.6mhz, 7.5/10mhz

Scan Depth

90-160-200-240mm, 20-40-60-100mm,90-130-160-200mm

Presets

Abdomen, Cardiac, User1, User2

Thyroid, Small parts, pediatrics, Vascular, Carotid, Breast MSK, Nerve, Aesthetics  Vessel Flow User1,User2

Host

Tablet, Smart phone, PC

Connection

WiFi & USB

Software Adjustable Parameters

GN(gain), D(Depth), ENH(Enhancement), DR(Dynamic range), F(Frequency), FocusPos, PRF, WF, Mode, 8TGC, Biopsy, Annote, Page left/right/up/down.

Measurement

B: Length, Area/Circumference, Angle, Trace, Distance

B+M: Heart Rate, Time, LVIDd, LVIDs, SV, EF, Distance

B+PW: Velocity, Heart Rate(2), S/D, Depth

Automatic Vessel Flow Measure：PS, ED, TAMAX, TAMEAN, PI, RI, S/D, DIAM, FL

Display Mode

B, B/M, color, PW, PDI

Playback Frame

100, 200, 500, 1000 optional



Gain

40-110Db

Language

Chinese, Ukrainian, German, English, Russian, France, Italian, Spanish, Portuguese (Brazil)

Power

By built-in 2 Lithium batteries

Power Consumption

3W (probe run) /1W (probe stop)

Wifi Type

Built-in WiFi, 802.11g/20MHz/2.4G/5G/450Mbps

Channel

64

Frame

24s/f

Image Save

jpg, avi, Mp4 and DICOM format

Image Gray Scale

256 level

Waterproof Grade

IP68

Cooling coating

Yes



Battery Last

4hours (Working time), 72 hours(Stand by time)

Battery Replaceable

Yes (by engineer)

Charger

Type-C USB Charger, wireless charger

Anti-skid design

Yes - 4 sides of probe

Who Is It For?

The Dual-head Multipurpose Ultrasound Phased + Linear Probe is built for clinicians who need deep imaging + superficial imaging in one portable scanner. It combines a phased array probe (ideal for cardiac, lung, and deeper assessments) with a linear probe (ideal for vascular, MSK, soft tissue, thyroid, nerve, and guided procedures). Dual-array handheld systems are specifically valued for whole-body point-of-care versatility.

Use Cases for The Dual-head Multipurpose Ultrasound Phased + Linear Probe

1. Cardiac & Focused Heart Assessments

Use the phased array mode for focused cardiac scans, bedside heart assessments, and selected echocardiography views. Ideal for emergency medicine, acute care, anaesthesia, and point-of-care decision-making.

2. Chest & Lung Examinations

Suitable for rapid chest and lung scanning to support assessment of pleural fluid, lung sliding, and selected respiratory presentations in hospital, urgent care, or community settings.

3. Vascular Imaging & Blood Flow Assessment

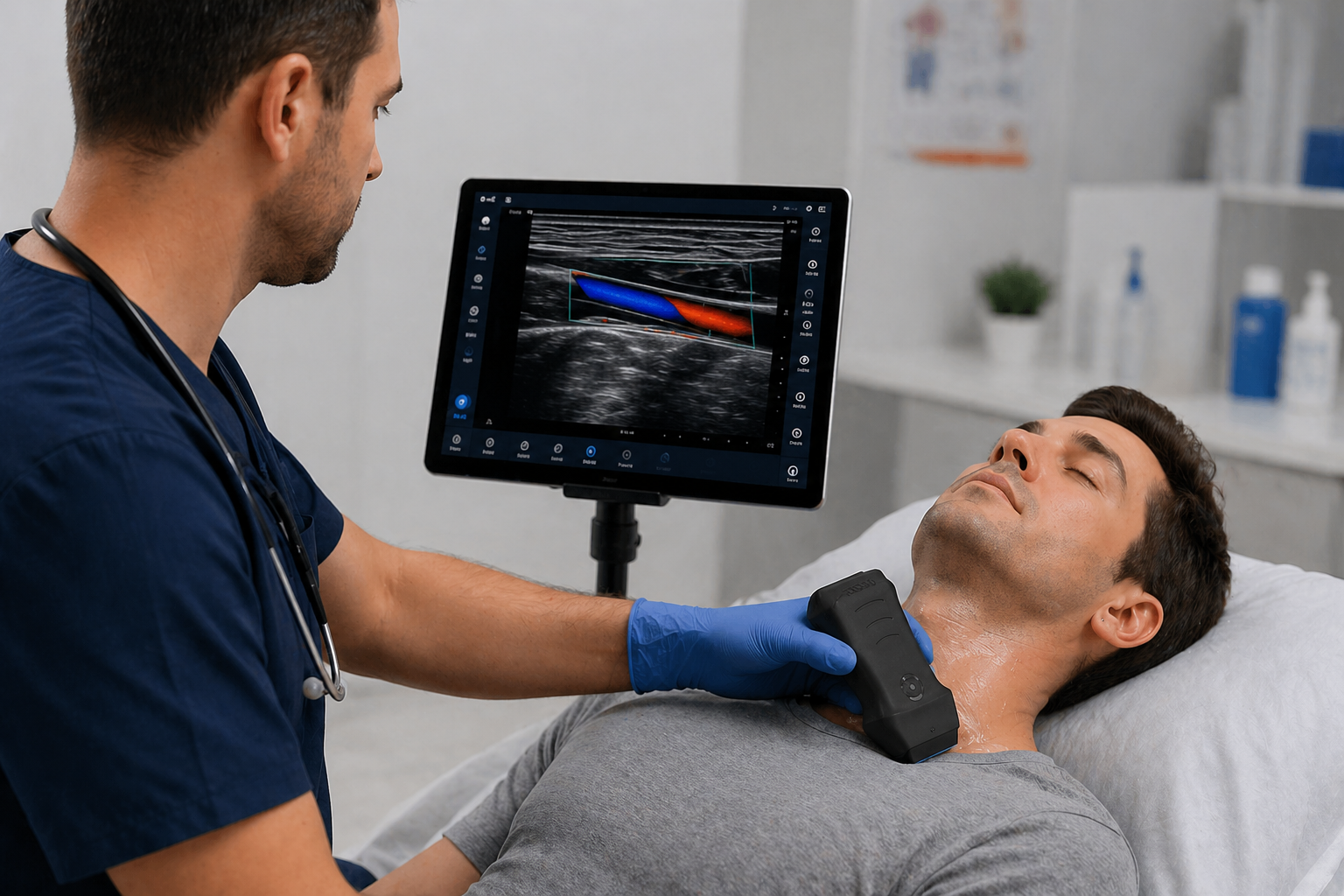

Use the linear mode with Colour Doppler, PW, and PDI to assess superficial vessels, carotid structures, venous access, circulation, and blood flow patterns.

4. Musculoskeletal (MSK) Imaging

Ideal for examining muscles, tendons, ligaments, joints, bursae, and soft tissue injuries. Useful for physiotherapy, sports medicine, orthopaedics, rehabilitation, and pain clinics.

5. Guided Injections & Procedures

Supports real-time needle guidance for joint injections, tendon sheath procedures, nerve blocks, vascular access, and pain management interventions.

6. Nerve Imaging & Regional Anaesthesia

Helps visualise superficial nerves and surrounding anatomy for nerve blocks, regional anaesthesia, and image-guided pain procedures.

7. Thyroid, Breast & Small Parts Imaging

Use the linear probe mode for thyroid scanning, breast tissue assessments, lymph nodes, and other superficial structures requiring higher detail imaging.

8. Emergency & Bedside Point-of-Care Ultrasound (POCUS)

Portable design makes it ideal for emergency departments, ambulances, wards, ICU, and bedside rapid assessments where immediate imaging supports faster decisions.

9. Community & Mobile Healthcare

Wireless portability allows clinicians to perform scans in care homes, community clinics, remote settings, and home visits without bulky equipment.

10. Education & Training

Excellent for teaching cardiac basics, vascular access, ultrasound-guided procedures, anatomy, and multi-specialty scanning in universities and training centres.

REQUEST A DEMO
REQUEST A QUOTE

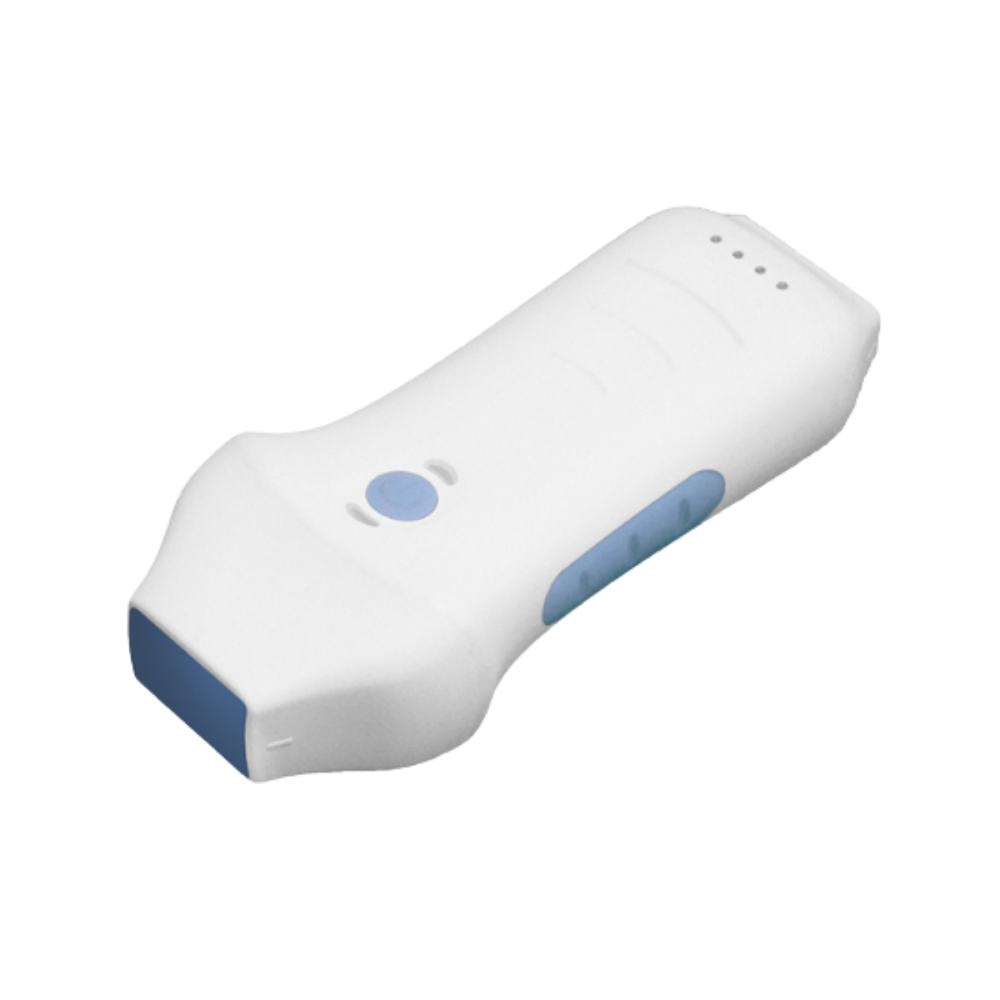

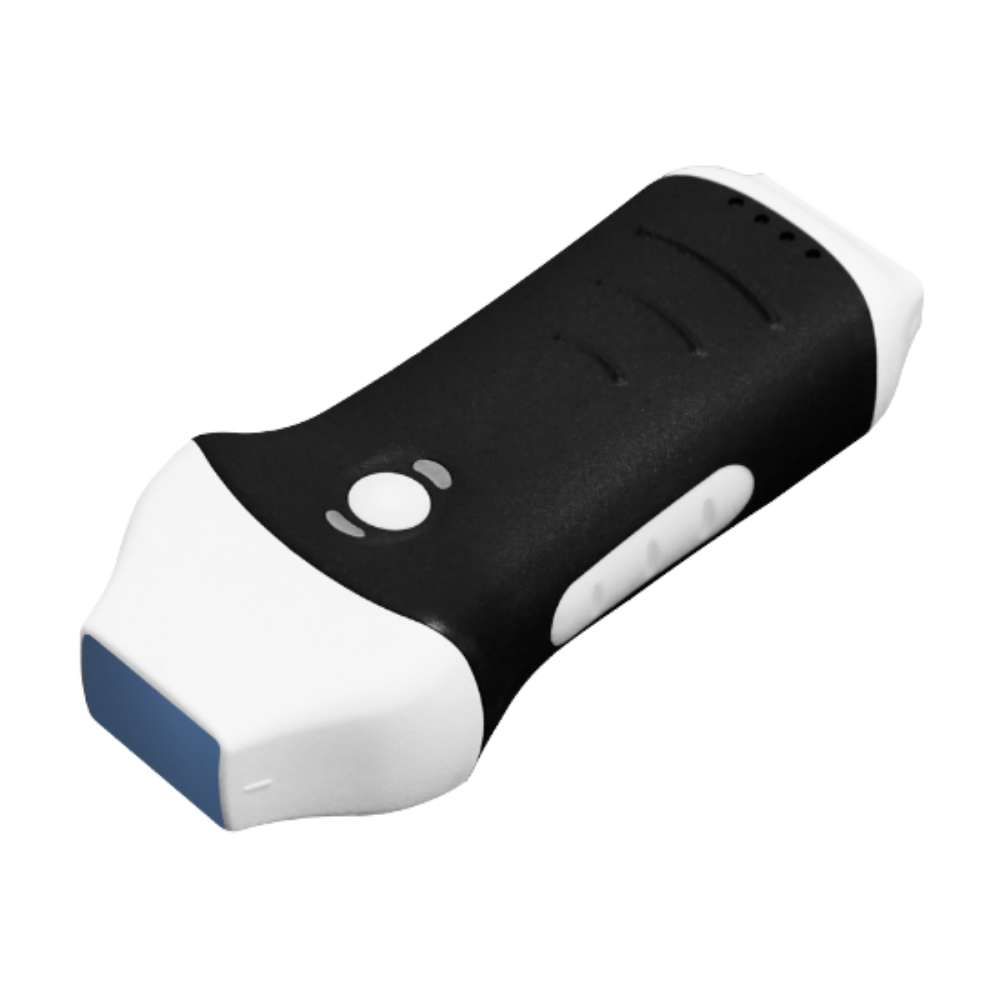

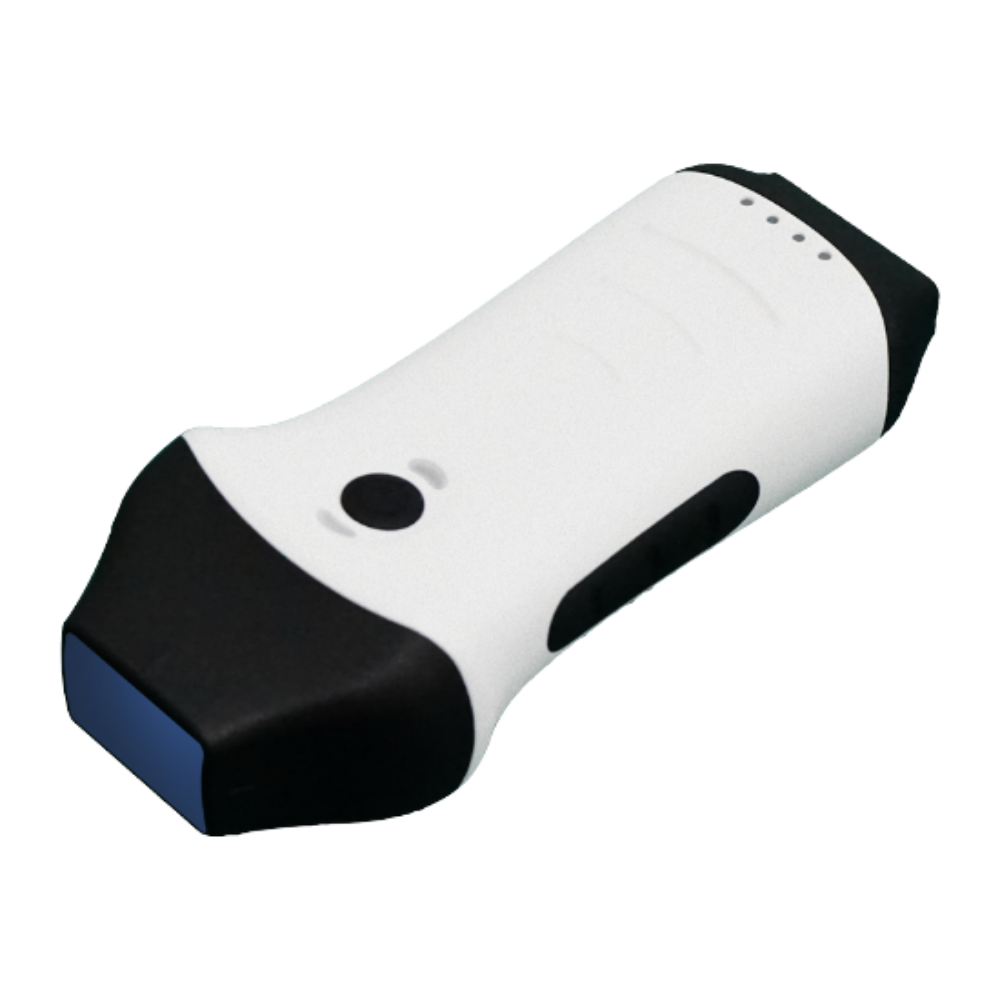

4 Distinctive Beautiful Colours
