Portable HD Ultrasound for MSK, Vascular & Clinical Practice

The MX Pro Color Superficial Ultrasound HD Linear Probe delivers high-definition wireless imaging for musculoskeletal assessments, guided injections, vascular scanning, and point-of-care diagnostics - all from your smartphone, tablet, or PC.

REQUEST A DEMO
REQUEST A QUOTE

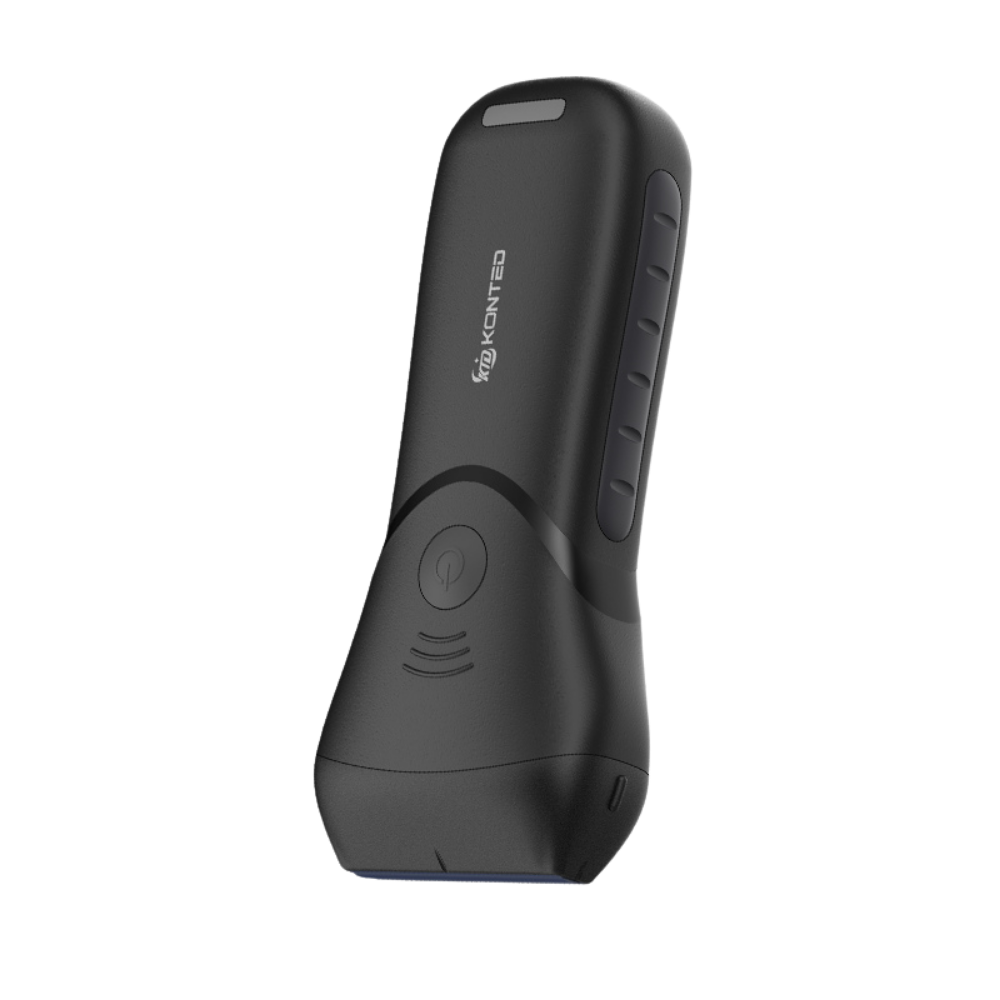

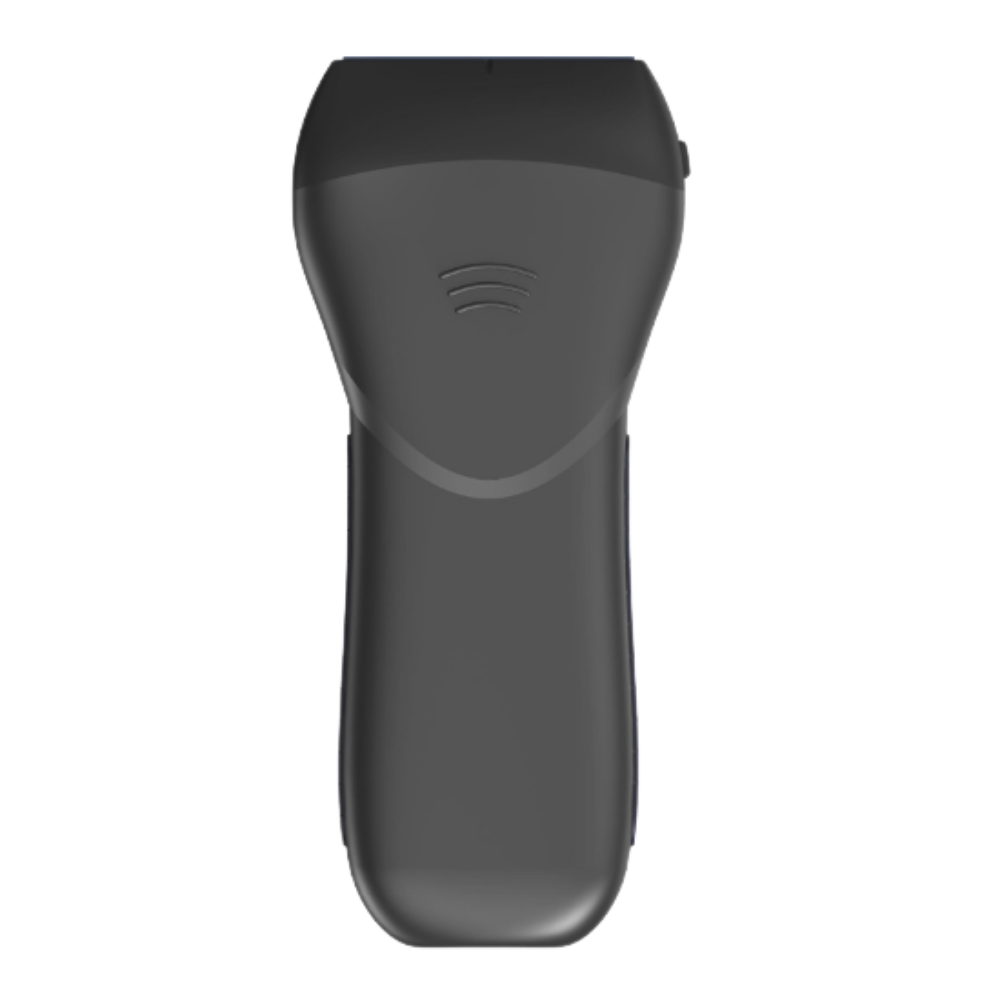

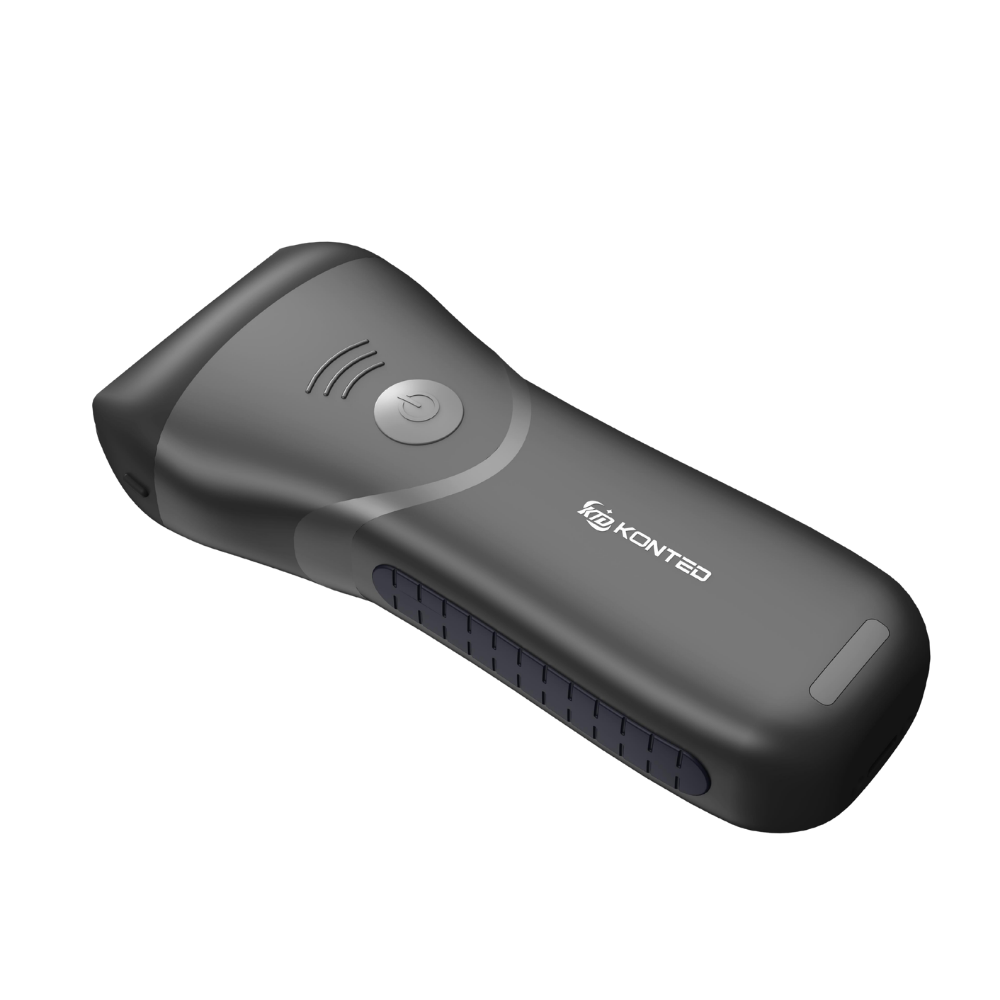

The MX Pro Color Superficial Ultrasound HD Linear Probe is a premium wireless HD colour Doppler ultrasound scanner designed for clinicians who need performance, portability, and versatility without compromise. With 7.5–10 MHz high-definition imaging, it delivers clear real-time visualisation of muscles, tendons, blood vessels, nerves, and soft tissues - making it ideal for musculoskeletal assessments, vascular scanning, guided injections, physiotherapy, and point-of-care diagnostics.

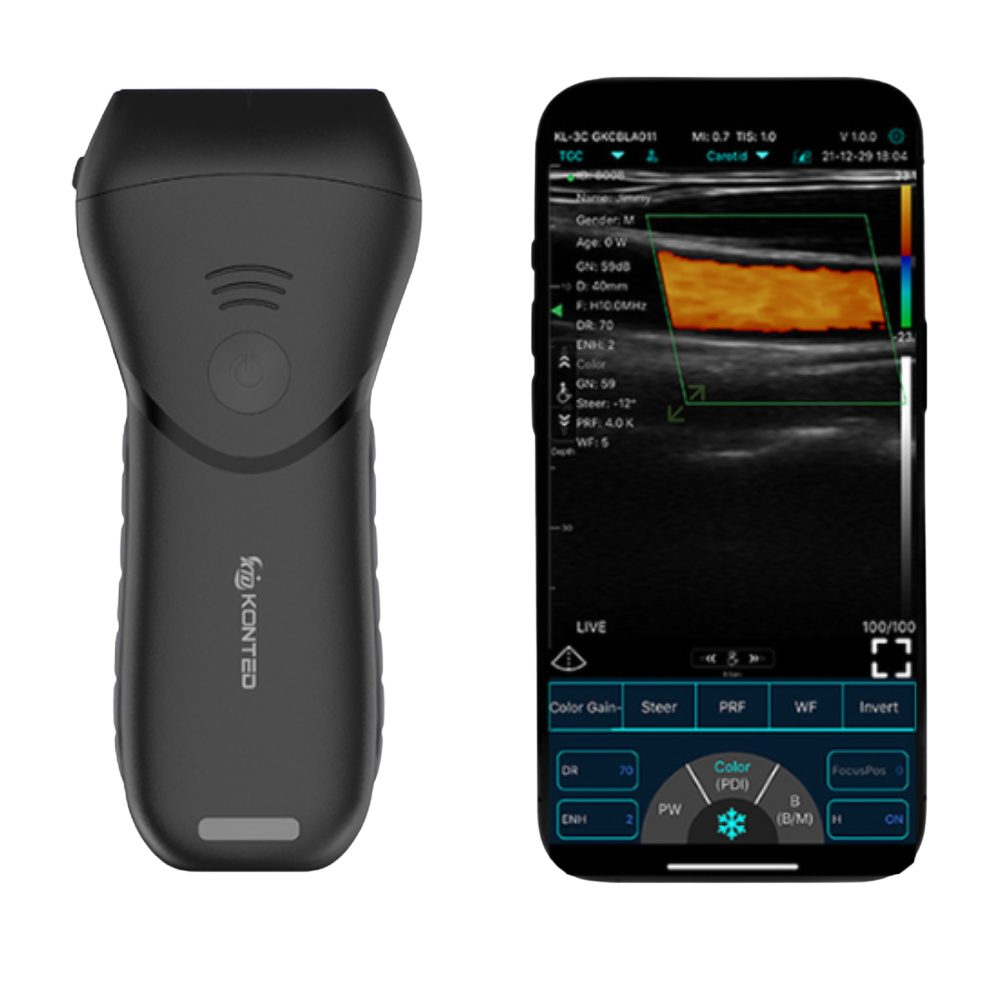

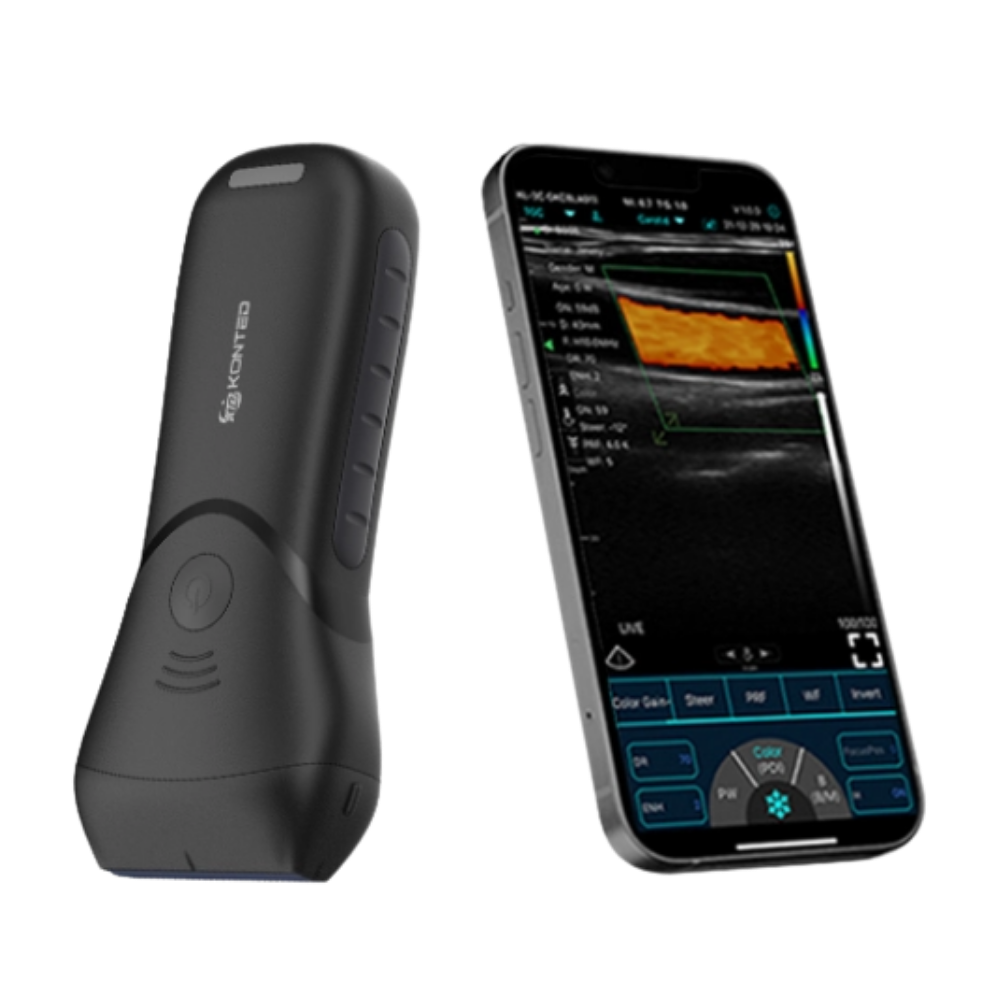

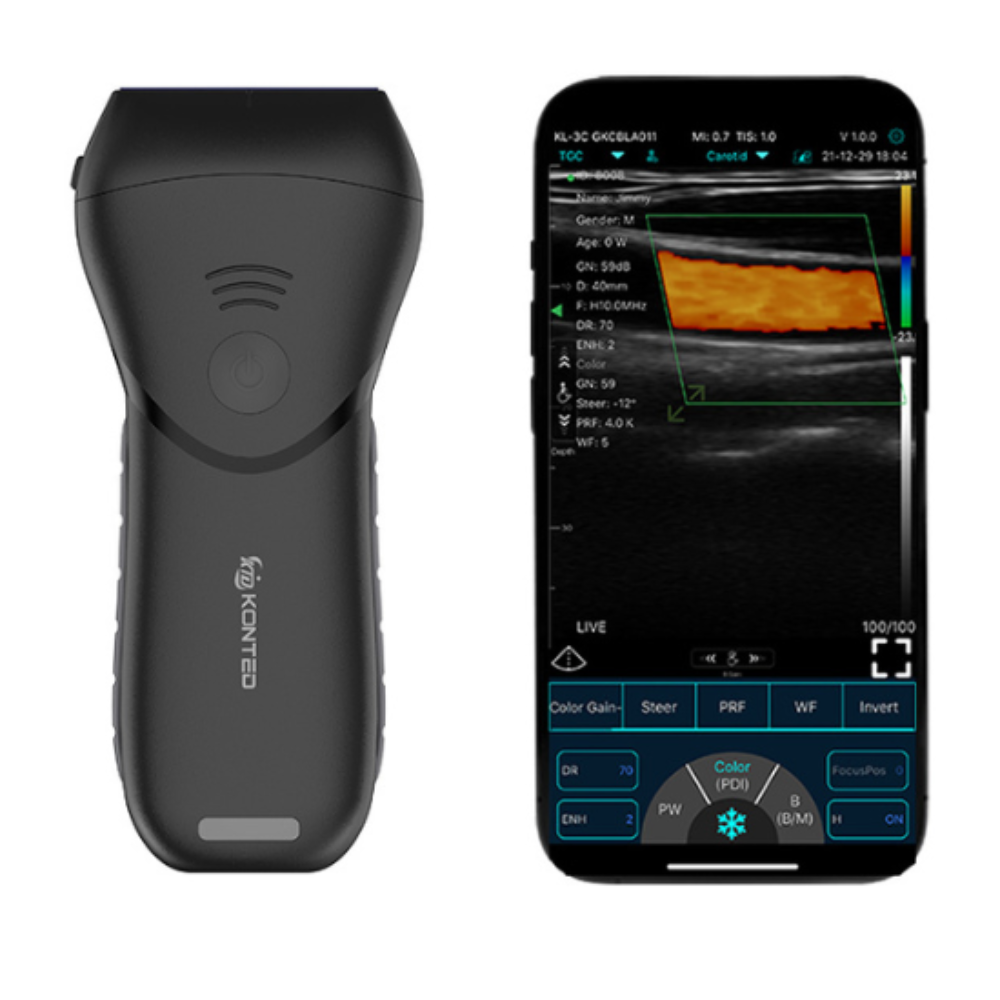

Compatible with Android, iOS, and Windows smartphones, tablets, and PCs, the MX Pro brings professional ultrasound capability directly to your clinic, treatment room, or mobile practice. Lightweight, easy to use, and built for modern healthcare environments, it helps practitioners make faster decisions, improve treatment accuracy, and deliver greater patient confidence wherever they work.

6 Key Benefits

1. High-Definition Imaging for Clearer Assessments

With 7.5–10 MHz imaging and HD colour Doppler capability, the MX Pro delivers clear real-time visualisation of muscles, tendons, vessels, nerves, and soft tissue structures to support accurate clinical assessments.

2. Wireless Portability for Modern Practice

Its compact wireless design allows clinicians to scan without bulky consoles or restrictive cables, making it ideal for clinics, treatment rooms, mobile practice, and point-of-care use.

3. Multi-Purpose Clinical Versatility

Designed for MSK, vascular, guided injections, physiotherapy, pain management, thyroid, breast, and general superficial imaging, helping practitioners use one scanner across multiple applications.

4. Colour Doppler for Enhanced Insight

Built-in Colour Doppler, PW, and PDI modes help assess blood flow and vascular structures, supporting more informed diagnosis and treatment planning.

5. Works with Everyday Devices

Compatible with Android, iOS, and Windows smartphones, tablets, and PCs, the MX Pro brings professional ultrasound capability to the devices clinicians already use.

6. Long-Lasting Battery & Flexible Charging

Powered by a 4200 mAh battery, the MX Pro offers up to 3 hours continuous scanning with wireless or USB charging options, helping busy clinicians stay productive throughout the day.

REQUEST A DEMO
REQUEST A QUOTE

Specifications

(Click a feature to expand)

Model

C10MX PRO

Probe Type

Wireless linear probe

Connection

Wi-Fi



Frequency

7.5-10Mhz

Scan Depth

20-40-60-100mm

Elements

192

Host

IOS/Android/Windows, Tablet, Smart phone, PC

Software Adjustable Parameters

GN(gain), D(Depth), ENH(Enhancement), DR(Dynamic range), F(Frequency), FocusPos, PRF, WF, Mode, 8TGC, Biopsy, Annote

Dimensions

140*62*30mm

Weight

228g

Waterproof Grade

IP68

Display Mode

B, B/M, Color, PW, PDI, B+B

Frame rate

24s/f



Presets

Thyroid, Small parts, Pediatrics, Vascular, Carotid, Breast, MSK, Nerve, Vessel Flow, Aesthetics, user1, user2



Measurement

B: Length, Area, Circumference, Angle, Trace, Distance

B+M: Heart rate, Time, Distance

B+PW: Velocity,Heart rate(2), S/D, Depth

Automatic Vessel Flow Measure：PS, ED, TAMAX, TAMEAN, PI, RI, S/D, DIAM, FL

Cooling coating

Yes



Wifi Type

Built-in WiFi, 802.11g/20MHz/5G/450Mbps

Battery Last

3hours (Working time), 12hours (Stand by time)

Channel

64

Battery Replaceable

Yes

Charger

Wireless charger, USB cable

Gain

40-110Db

Anti-skid design

Yes 4 sides

Power

By built-in 4200mAh battery

Language

Chinese, Ukrainian, German, English, Russian, France, Italian, Spanish, Portuguese (Brazil)

Who Is It For?

The MX Pro is designed for clinicians who need portable, high-definition superficial imaging with Colour Doppler capability. It is especially well suited for practitioners working in aesthetics, musculoskeletal care, vascular imaging, pain procedures, and point-of-care diagnostics. Oras Medical positions it for facial aesthetics as well as broader clinical use including physiotherapy and anaesthesiology.

Use Cases for MX Pro Color Superficial Ultrasound HD Linear Probe

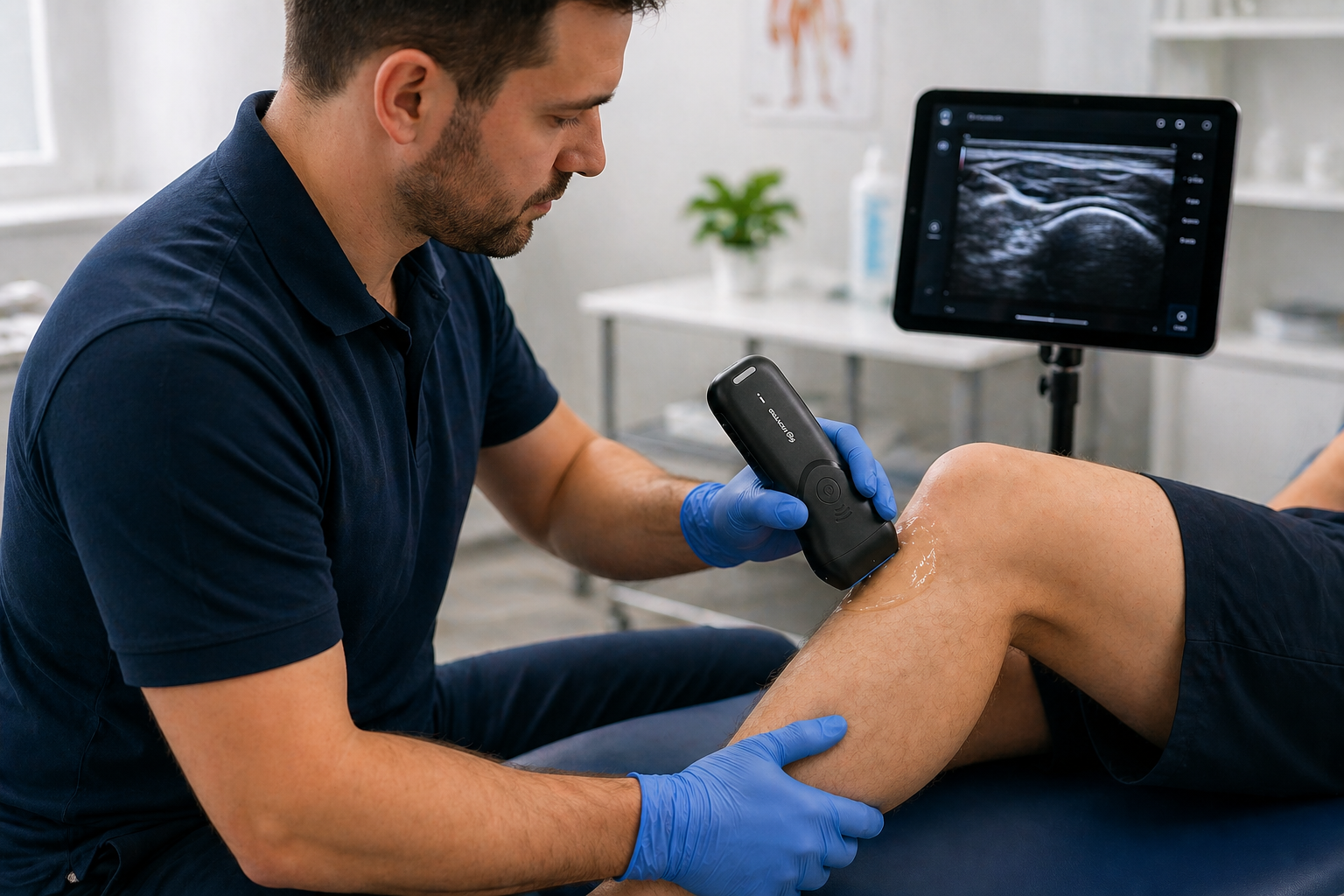

1. Musculoskeletal (MSK) Assessments

Ideal for imaging muscles, tendons, ligaments, joints, bursae, and superficial soft tissue structures. Useful for physiotherapy, sports medicine, rehabilitation, orthopaedics, and pain clinics when assessing injuries or guiding treatment plans.

2. Guided Injections & Pain Management

Supports real-time visualisation during injections, helping clinicians guide needles with greater precision. Suitable for joint injections, tendon sheath injections, trigger point procedures, nerve-related pain treatments, and regenerative medicine applications.

3. Vascular Imaging & Blood Flow Assessment

With Colour Doppler, PW, and PDI modes, the MX Pro can assess superficial blood vessels and blood flow. Useful for vascular mapping, circulation assessment, vein localisation, and treatment planning.

4. Nerve Imaging & Regional Procedures

Helps visualise superficial nerves and surrounding tissue structures, supporting nerve blocks, pain management procedures, and anatomy-guided interventions.

5. Physiotherapy & Sports Injury Clinics

Portable design makes it ideal for private physiotherapy clinics, sports therapists, and mobile practitioners who need fast imaging for tendons, strains, soft tissue injuries, and rehabilitation monitoring.

6. Thyroid & Neck Scanning

Suitable for superficial neck structures including thyroid imaging, lymph nodes, and surrounding tissues. Can assist with screening, monitoring, and referral decisions.

7. Breast & Small Parts Imaging

Useful for superficial breast tissue, lymph nodes, and small parts examinations where high-frequency detail is beneficial.

8. Dermatology & Soft Tissue Assessment

Can be used to assess cysts, nodules, swelling, superficial lesions, and soft tissue irregularities. Helpful in dermatology, minor procedures, and primary care settings.

9. Point-of-Care Ultrasound (POCUS)

Its wireless portable design makes it ideal for rapid bedside or chairside assessments in clinics, urgent care, community healthcare, and private practice settings.

10. Education & Training

Excellent for teaching anatomy, ultrasound-guided injections, vascular access, MSK scanning, and practical clinical skills in universities, academies, and training centres.
