Portable High-Frequency Ultrasound for MSK, Vascular & Superficial Imaging

The High Frequency Linear Ultrasound Probe delivers clear, real-time imaging for musculoskeletal, vascular, thyroid, nerve, breast, and guided procedures - combining wireless portability, Colour Doppler capability, and professional performance wherever you work.

REQUEST A DEMO
REQUEST A QUOTE

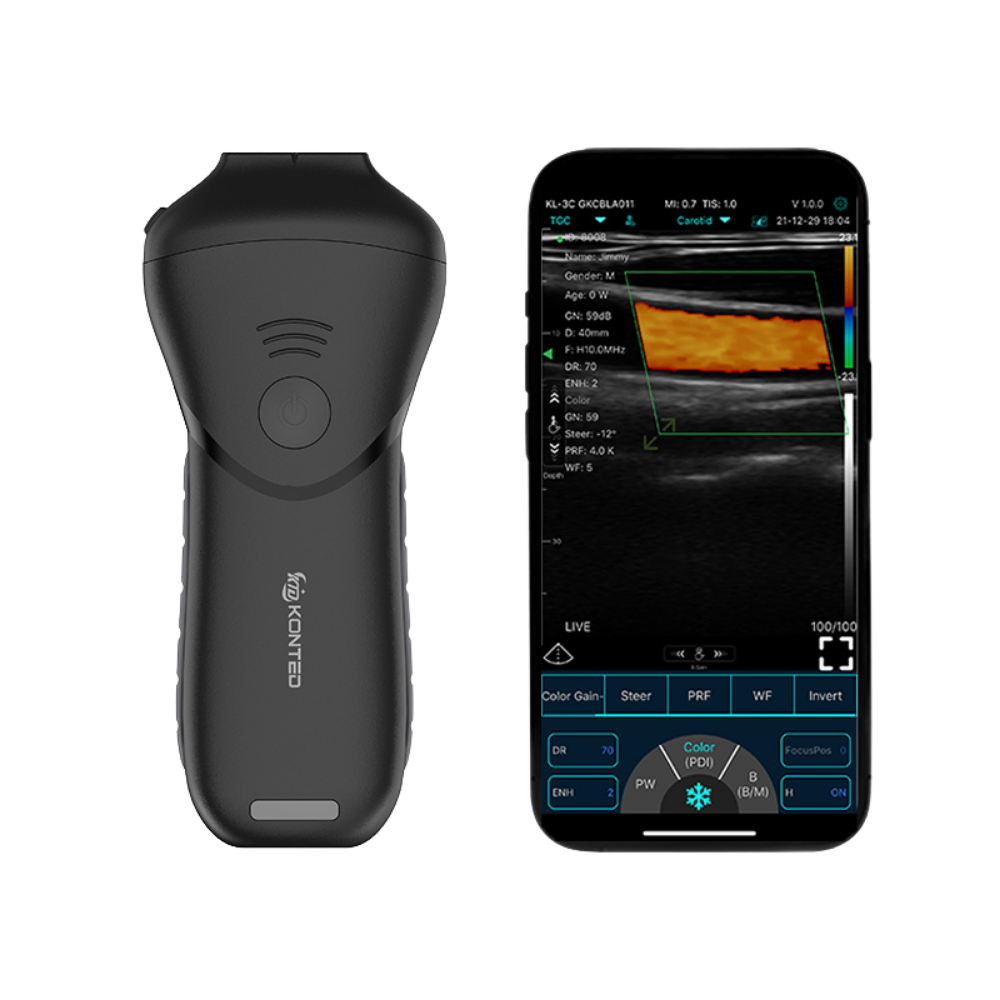

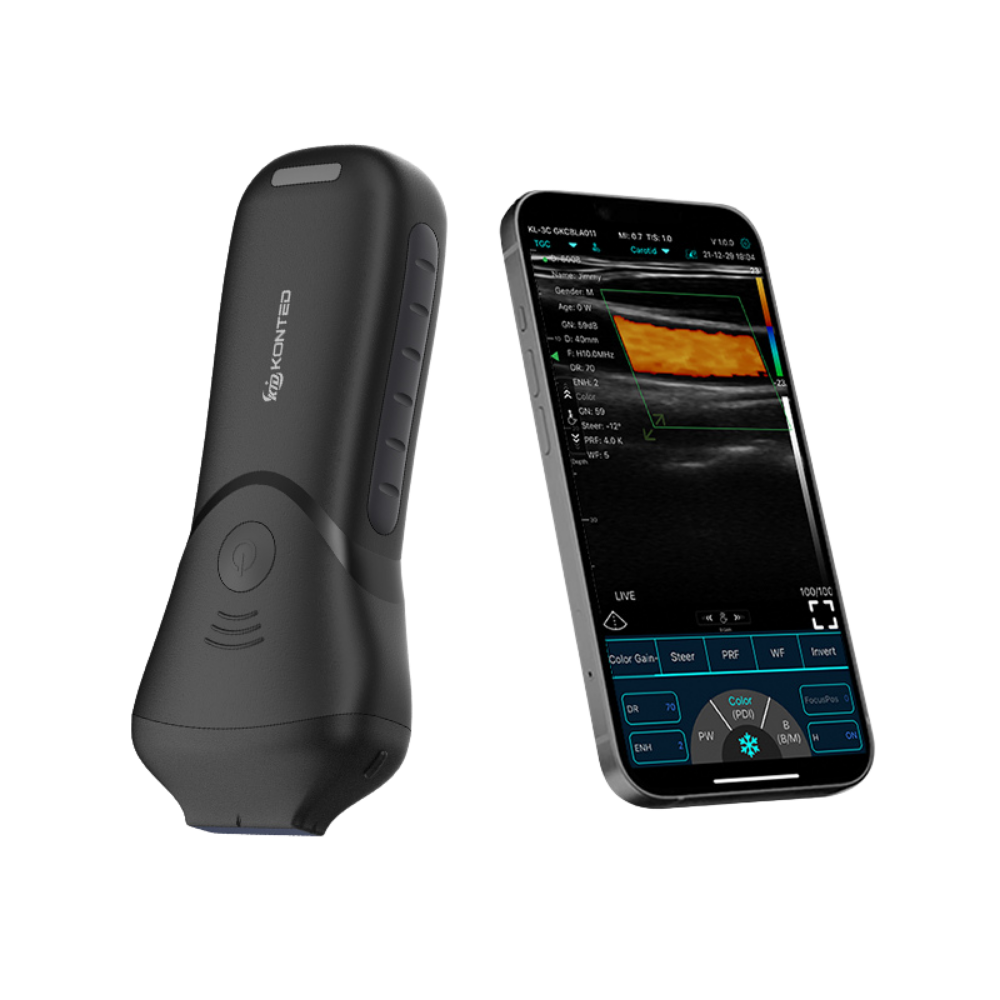

The C10MS Pro USB & Wifi High Frequency Linear Ultrasound Probe is built for clinicians who need fast, accurate imaging without the cost or inconvenience of bulky ultrasound systems.

Delivering high-frequency 10–14 MHz imaging with Colour Doppler capability, it provides exceptional clarity for musculoskeletal, vascular, thyroid, breast, nerve, and other superficial examinations. Whether assessing injuries, guiding injections, or evaluating vessels, the C10MS Pro helps you work with greater confidence and precision.

Compact, wireless, and easy to use, the C10MS Pro connects seamlessly to iOS, Android, and Windows devices, turning your tablet, smartphone, or PC into a powerful portable imaging system.

Ideal for clinics, hospitals, private practice, and mobile care settings, it combines professional performance, portability, and everyday versatility - making advanced ultrasound more accessible wherever you work.

6 Key Benefits

High-Frequency Precision. Portable Power. Everyday Clinical Value.

1. Exceptional High-Resolution Imaging

With 10–14 MHz high-frequency performance, the C10MS Pro delivers clear, detailed images of superficial structures such as tendons, vessels, nerves, thyroid, breast tissue, and joints.

2. Broad Clinical Versatility

Designed for MSK, vascular, thyroid, breast, nerve, carotid, paediatric, and small parts imaging, making it a valuable scanner across multiple specialties.

3. Colour Doppler for Better Decisions

Built-in Colour Doppler, PW, and PDI modes help visualise blood flow and vascular structures, supporting faster and more informed diagnosis.

4. Portable Wireless Freedom

Connects seamlessly to iOS, Android, and Windows devices, allowing clinicians to scan wherever they work without bulky consoles or fixed systems.

5. Ideal for Guided Procedures

Excellent for joint injections, tendon sheath procedures, vascular access, and nerve blocks, helping improve precision and patient confidence.

6. Built for Everyday Clinical Practice

Lightweight, rechargeable, and easy to carry, the C10MS Pro offers dependable performance for clinics, hospitals, community teams, and mobile practitioners.

REQUEST A DEMO
REQUEST A QUOTE

Specifications

(Click a feature to expand)

Model

C10MS PRO

Probe Type

Wireless linear probe

Elements

192

Frequency

10-14Mhz

Scan Depth

20-30-40-60mm

Presets

Thyroid, Small parts, Pediatrics, Vascular, Carotid, Breast, MSK, Nerve , VesselFlow Aesthetics user1 user2

Host

IOS/Android/Windows, Tablet, Smart phone, PC

Connection

WiFi & USB

Software Adjustable Parameters

GN(gain), D(Depth), ENH(Enhancement), DR(Dynamic range), F(Frequency), FocusPos, PRF, WF, Mode, 8TGC, Biopsy, Annote

Measurement

B: Length, Area/Circumference, Angle, Trace, Distance

B+M: Heart rate, Time, Distance

B+PW: Velocity, Heart Rate(2), S/D, Depth

Automatic Vessel Flow Measure：PS, ED, TAMAX, TAMEAN, PI, RI, S/D, DIAM, FL

Display Mode

B, B/M, Color, PW, PDI, B+B

Playback Frame

100, 200, 500, 1000 optional



Gain

40-110Db

Language

Chinese, Ukrainian, German, English, Russian, France, Italian, Spanish, Portuguese (Brazil)

Power

By built-in 4200mAh battery

Wifi Type

Built-in WiFi, 802.11g/20MHz/5G/450Mbps

Channel

64

Frame

24s/f

Cooling coating

Yes



Battery Last

3hours (Working time), 12hours (Stand by time)

Battery Replaceable

Yes (by engineer)

Charger

Wireless charger, USB cable

Who Is It For?

This scanner is primarily used by clinicians who need high-resolution superficial imaging, vascular assessment, MSK diagnostics, and guided procedures. High-frequency linear probes are commonly used for superficial structures such as tendons, vessels, thyroid, nerves, and breast tissue.

Use Cases for C10MS Pro High Frequency Linear Ultrasound Probe

1. Musculoskeletal (MSK) Imaging

Ideal for assessing muscles, tendons, ligaments, joints, bursae, and soft tissue injuries. Commonly used for shoulder pain, knee swelling, Achilles tendon issues, wrist injuries, and sports rehabilitation.

2. Guided Injections & Procedures

Supports real-time imaging for joint injections, tendon sheath injections, pain procedures, nerve blocks, and vascular access, helping improve accuracy and patient confidence.

3. Vascular Imaging & Blood Flow Assessment

Use Colour Doppler, PW, and PDI modes to examine superficial veins, arteries, carotid vessels, circulation, and blood flow patterns.

4. Thyroid & Neck Imaging

Suitable for thyroid gland, lymph nodes, neck soft tissues, and superficial masses, providing clear imaging of small structures.

5. Breast & Superficial Tissue Imaging

Useful for focused imaging of breast tissue and superficial abnormalities, supporting clinical assessments and follow-up examinations.

6. Nerve Imaging

Helps visualise peripheral nerves and surrounding anatomy for assessment, pain management, and guided procedures.

7. Sports Medicine & Physiotherapy

Excellent for injury diagnosis, treatment planning, progress monitoring, and rehabilitation in sports clinics, physiotherapy centres, and performance medicine.

8. General Practice & Private Clinics

Provides portable ultrasound capability for quick superficial assessments, triage, and same-day diagnostic support.

9. Hospital & Outpatient Departments

Useful for bedside imaging, outpatient assessments, and portable scanning where mobility and flexibility are important.

10. Education & Training

A valuable tool for teaching ultrasound anatomy, procedural guidance, and practical scanning skills in universities and training centres.
